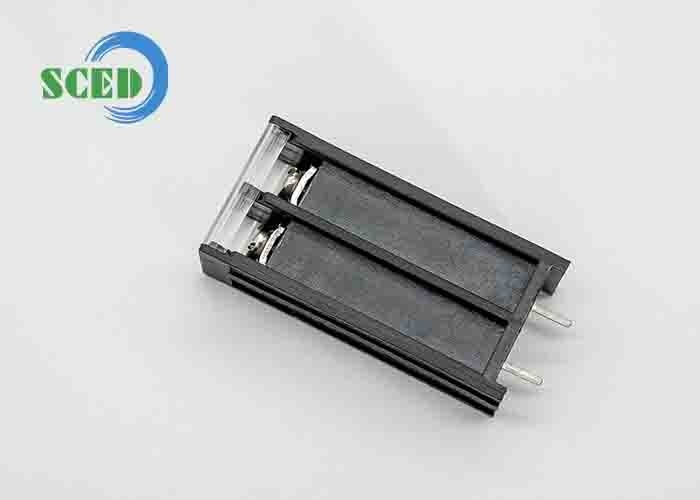

10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles

10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles

Products - Barrier Terminal Block
  • Highlight

    Plastic Barrier Terminal Block

  • Plastic
    PBT
  • Inflammability Class
    UL94,V0
  • Voltage
    300V
  • Current
    20A
  • Type
    Barrier
  • Terminal
    Brass
  • Poles
    2 Poles
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TB1000-05-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.127-0.203 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles

  • 10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles
  • 10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles
  • 10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles
Get Price Contact Now

10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles





Detailed product Description:



Pitch 10.00mm, 300V 20A, 2P, Barrier Terminal blocks, power terminal block

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

 'o�/� �h� :"Verdana","sans-serif";mso-bidi-font-family:Verdana'>



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.

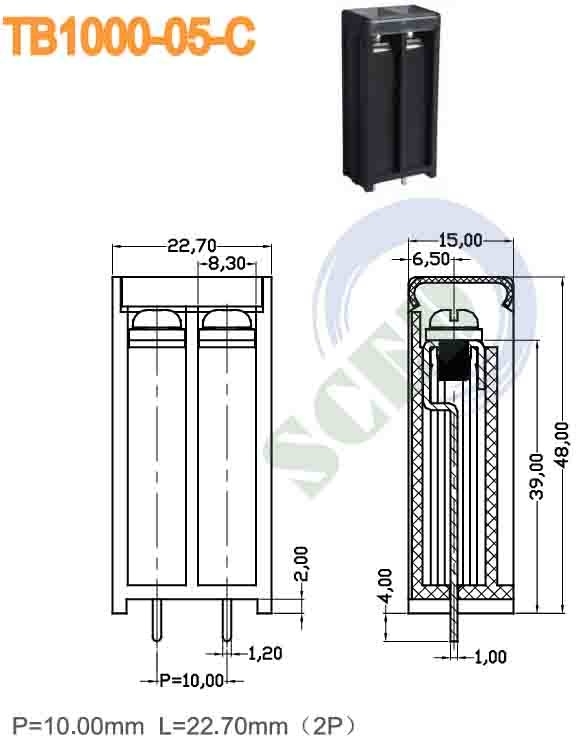

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20



300 / 10

Wire Range                       AWG

10-18



10-18

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 41

630 / 41

800 / 41

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ2.0

Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 4 / 10-13





10.00mm Barrier Type Terminal Block 20A 300V Plastic Black 2 Poles 0



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.
