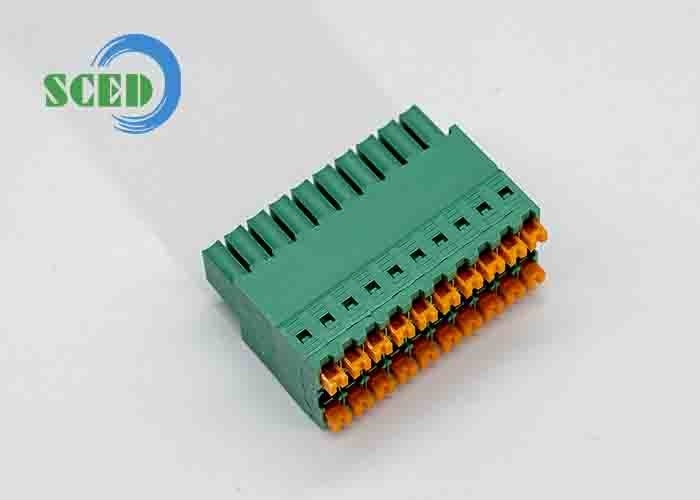

Female Sockets Plug-in Terminal Block Pitch 3.50mm 300V 10A 2P-20P 16-24AWG
-
Highlight
10A Plug-in Terminal Block
,2P-20P Plug-in Terminal Block
,3.50mm Plug-in Terminal Block
-
Wire InletRight Angle Wire Inlet
-
Rated Current10A
-
FuncationWire Conneting
-
ServiseOEM ODM Or Current Goods
-
ItemPlug In Type, Female Type
-
Poles2-20 Poles
-
ApprovalsUL, CE
-
Voltage300V
-
Inflammability ClassUL94, V-0
-
Terminal MaterialPhosphor Bronze
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP381P-28
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Female Sockets Plug-in Terminal Block Pitch 3.50mm 300V 10A 2P-20P 16-24AWG
Female Sockets Plug-in Terminal Block Pitch 3.50mm 300V 10A 2P-20P 16-24AWG
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

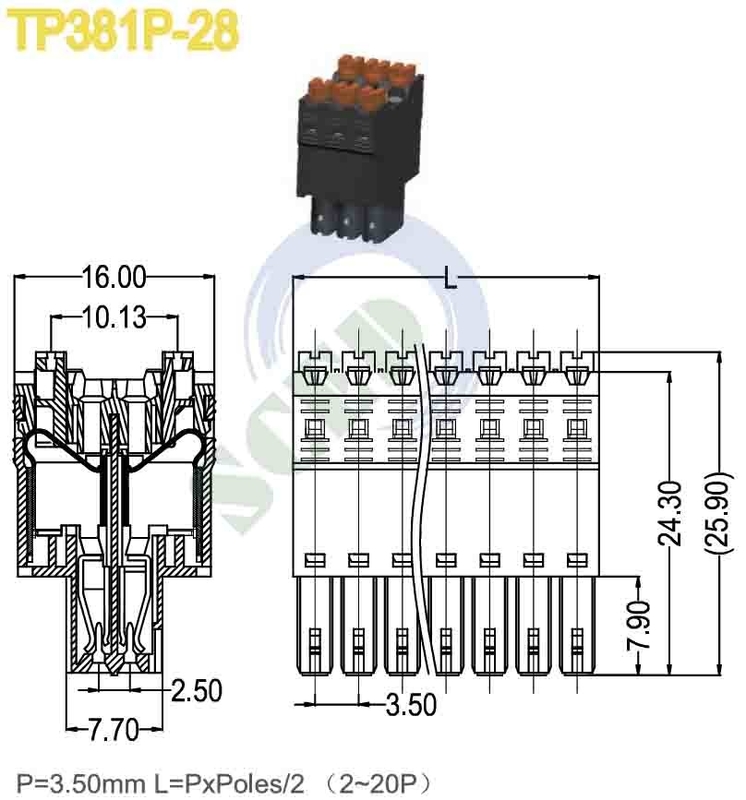

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 16-24 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 320 / 10 | 500 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | |||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Other Data | |||
| Stripping Length mm | 10-12 | ||
| Screw / Torque / lbf.in | N.A. | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
