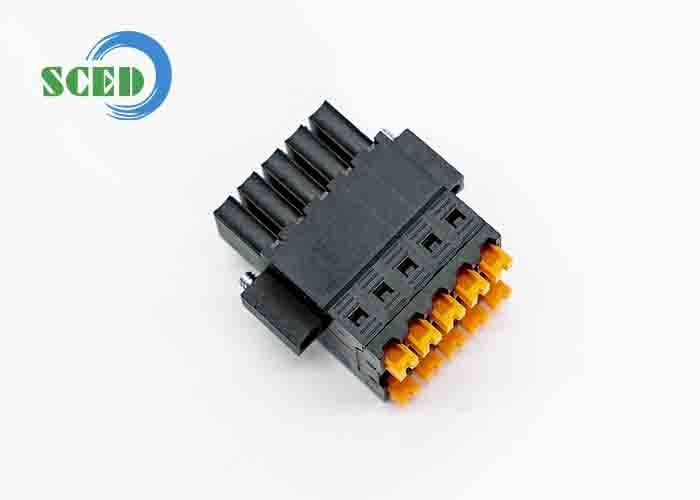

Plug-in Terminal Block Connector with 3.50mm Pitch 300V 10A Rating and PA66 UL94 V-0 Material

Plug-in Terminal Block Connector with 3.50mm Pitch 300V 10A Rating and PA66 UL94 V-0 Material

Products - Plug In Terminal Block
  • Highlight

    300V Plug-in Terminal Block

    ,

    3.50mm Pitch Plug-in Terminal Block

    ,

    10A Plug-in Terminal Block

  • Screw
    Phosphor Bronze
  • Type
    Female Part
  • Pitch
    3.5mm
  • Voltage
    300V
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Connection Type
    Screw
  • Applications
    PCB, Frequency Converter,etc.
  • Volt
    10A
  • Poles
    2-18 Poles
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-28F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Plug-in Terminal Block Connector with 3.50mm Pitch 300V 10A Rating and PA66 UL94 V-0 Material

Get Price Contact Now

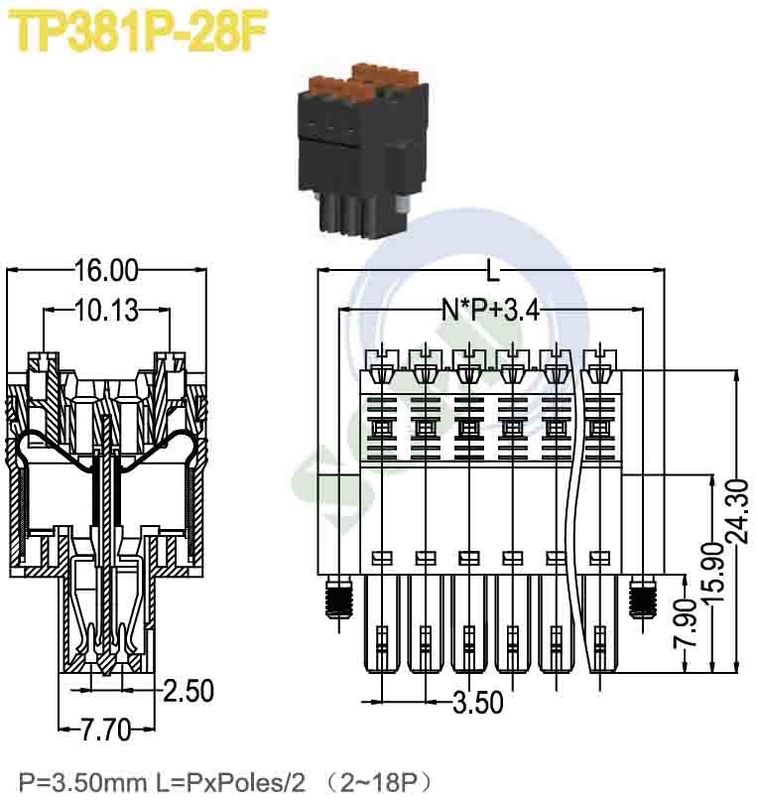

Plug-in Terminal Block 2P-18P Female Sockets PA66 Pitch 3.50mm 300V 10A

Plug-in Terminal Block 2P-18P Female Sockets PA66 Pitch 3.50mm 300V 10A

■Single Level; □Double Levels; □Triple Levels

This plug matches with male sockets' series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Plug-in Terminal Block Connector with 3.50mm Pitch 300V 10A Rating and PA66 UL94 V-0 Material 0
Technical Specifications
UL Technical Data B C D
Rated Voltage / Current V/A 300/10 300/10
Wire Range AWG 16-24
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 320 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm²
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm 10-12
Screw / Torque / lbf.in M2 / 1.5-1.8
Plug-in Terminal Block Connector with 3.50mm Pitch 300V 10A Rating and PA66 UL94 V-0 Material 1

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantages
  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers' demand
Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc.
