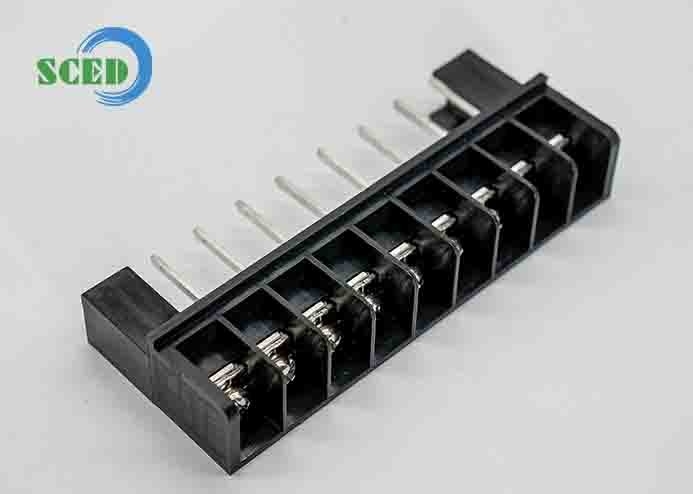

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

Products - Barrier Terminal Block
  • Highlight

    11.00mm Pitch Barrier Terminal Block

    ,

    10-22AWG Barrier Terminal Block

    ,

    30A Barrier Terminal Block

  • Flammability Rating
    UL94, V-0
  • Available Poles
    3-14 Poles
  • Stripping Length
    9-10mm
  • Wire Range
    10-22 AWG
  • Torque
    10-11 Lbf.in
  • Plating
    Tin/Nickel Plated
  • Pcb Mount
    Inserting And Welding
  • Rated Current
    30A
  • Color
    Black
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1100-03
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

  • Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P
  • Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P
  • Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P
Get Price Contact Now

Power Barrier Terminal Block 10-22AWG Pitch 11.00mm 600V 30A 3-14P Terminal Block

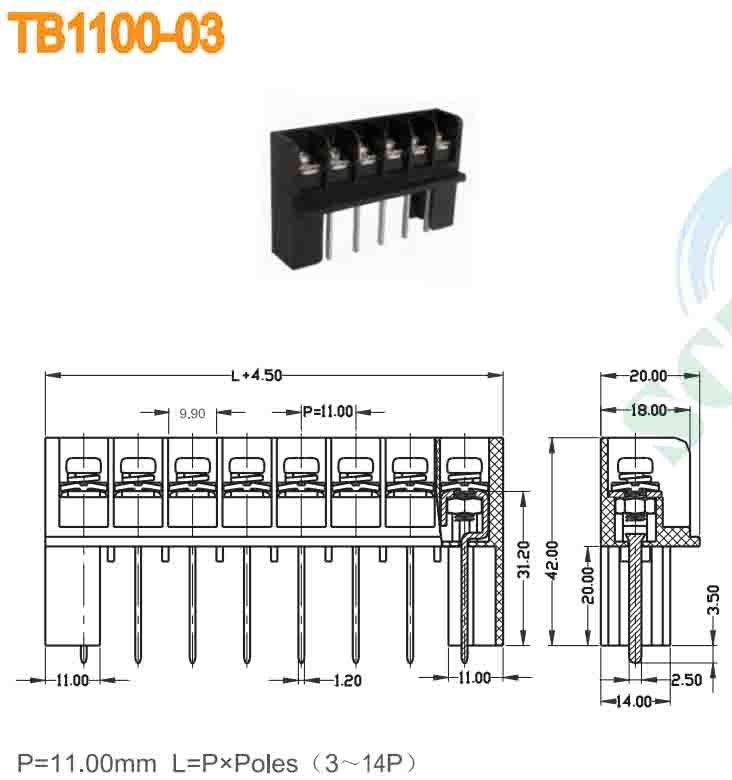

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30   600 / 5
Wire Range AWG 10-22   10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 1.6x2.9
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-11





Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P 2
