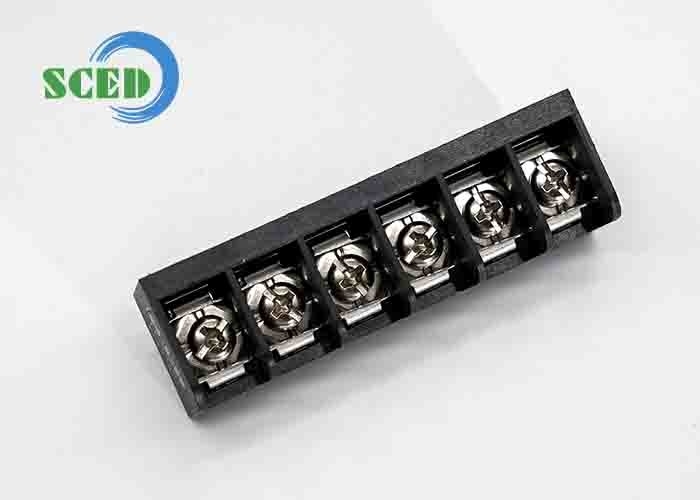

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Products - Barrier Terminal Block
  • Highlight

    300V Barrier Terminal Block

    ,

    PBT Barrier Terminal Block

    ,

    2-18P Power Terminal Block

  • Center Spacing
    11.10mm
  • Wire Connection
    Cage Clamp
  • Rated Current
    30A
  • Number Of Levels
    1
  • Insulation Material
    PBT
  • Voltage
    300V
  • Housing
    PBT.UL94V-0
  • Torque
    10-13 Lbf.in
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB1100-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

  • 300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
  • 300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
  • 300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
Get Price Contact Now

Pitch 12.70mm 300V 30A 2-18P Power Terminal Block PBT Barrier Terminal Block

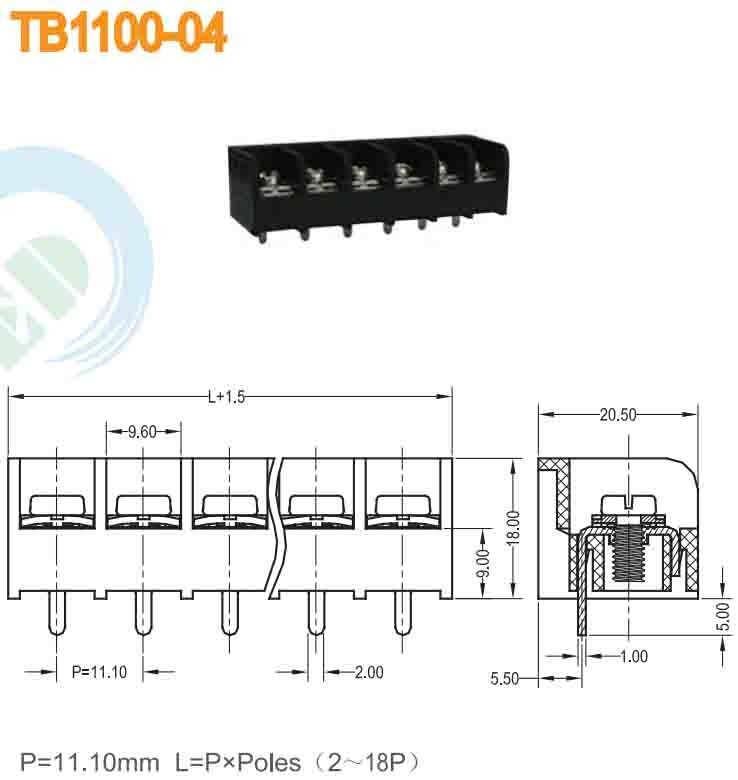

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30   300 / 10
Wire Range AWG 10-22   10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13





300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications 2
