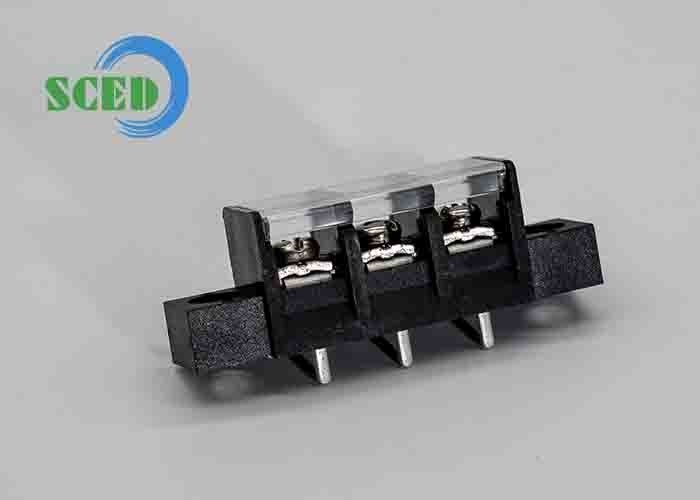

Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block
-
Highlight
11.00mm Barrier Terminal Block
,300V 30A Barrier Terminal Block
,2-16P Power Terminal Block
-
Insulation MaterialPBT
-
Voltage Rating600V
-
Operating Temperature-40°C To +105°C
-
Number Of Contacts2P-16P
-
Wire ConnectionScrew
-
Imflammability ClassUL94-V0
-
Current Rating30A
-
Wire Gauge10-22 AWG
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE,CQC
-
Model NumberTB1100-13F-D1-C
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block
Barrier Terminal Block M4 Screw 11.00mm 300V 30A 2-16P Power Terminal Block

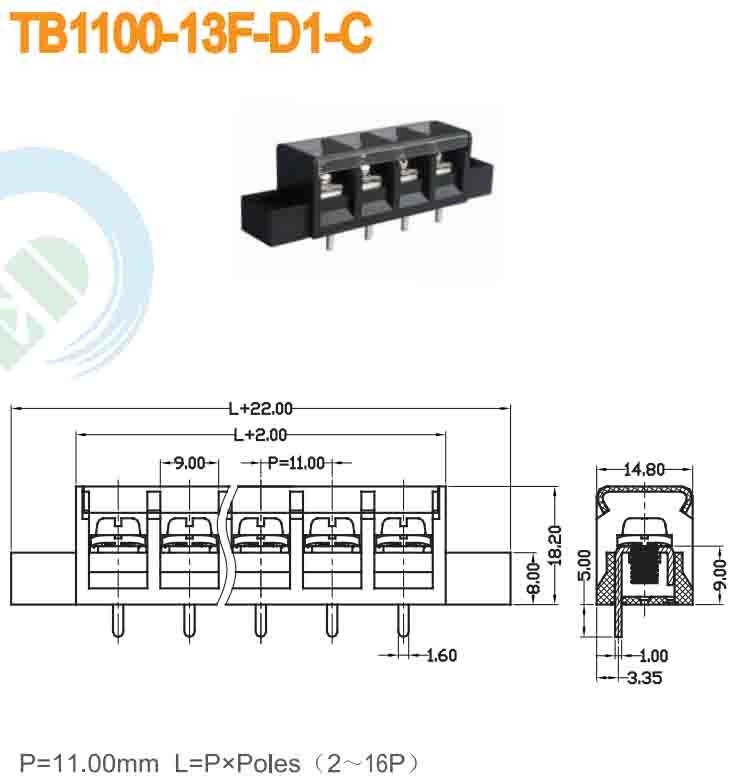

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
| Wire Range AWG | 10-22 | 10-22 | 10-22 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 41 | 1000 / 41 | 1000 / 41 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ3.0 | ||
| Stripping Length mm | 10-12 | ||
| Screw / Torque / lbf.in | M4 / 10.6-13 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
