Plug-in Terminal Block 5.08mm 300V 18A 2-24P Pluggable Terminal Block Header Male Sockets
-
Highlight
300V Plug In Terminal Block
,18A Plug In Terminal Block
,2-24P Plug In Terminal Block
-
CertificatesUL, CE
-
Current300V
-
Pitch5.08mm
-
TypePCB Type
-
Rated Current18A
-
ApplicationsPCB, Frequency Converter,etc.
-
ServiseOEM ODM Or Current Goods
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP508H-07V
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

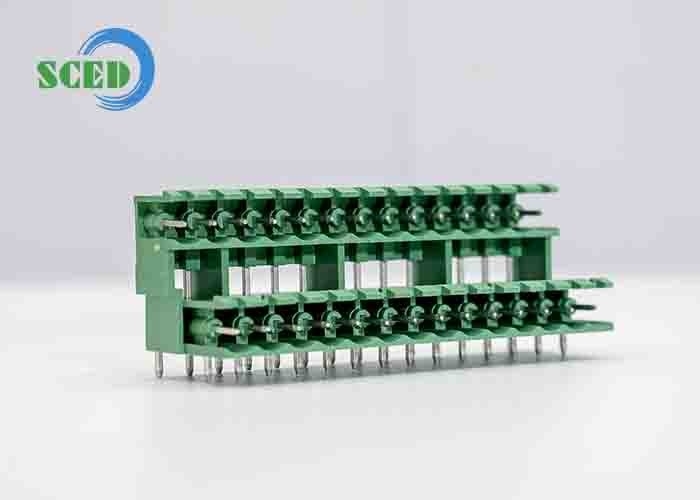

Plug-in Terminal Block 5.08mm 300V 18A 2-24P Pluggable Terminal Block Header Male Sockets
Plug-in Terminal Block 5.08mm 300V 18A 2-24P Pluggable Terminal Block Header Male Sockets
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F

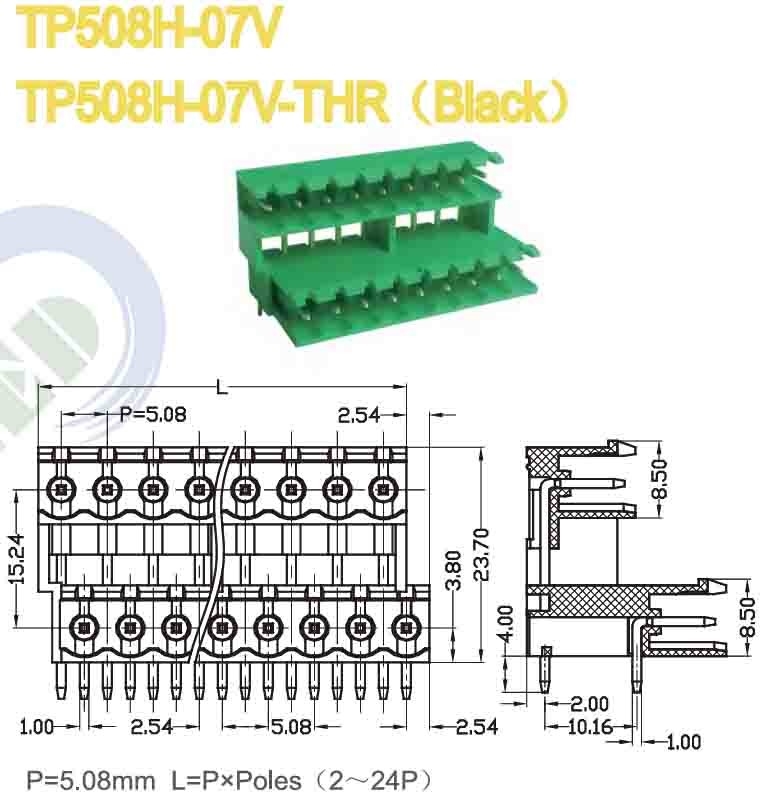

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
