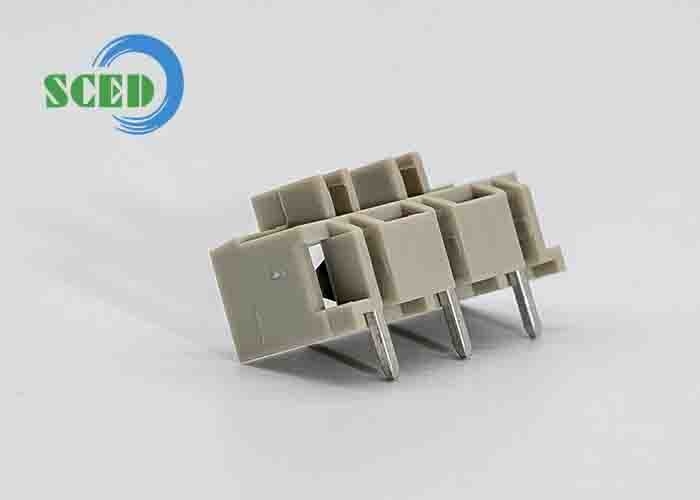

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
-
Highlight
18A Plug In Terminal Block
,2-16P Plug In Terminal Block
,7.50mm Plug In Terminal Block
-
TerminalBrass
-
PlasticPA66
-
Inflammability ClassUL94-V0
-
ServiseOEM ODM
-
Rated Currennt18A
-
Rated Voltage300V
-
PlatingTin Plated
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP508H-75V-GY
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
■Single Level; □Double Levels; □Triple Levels
This part is design for modular housing, for further information, please contact us and we will response you very quickly.

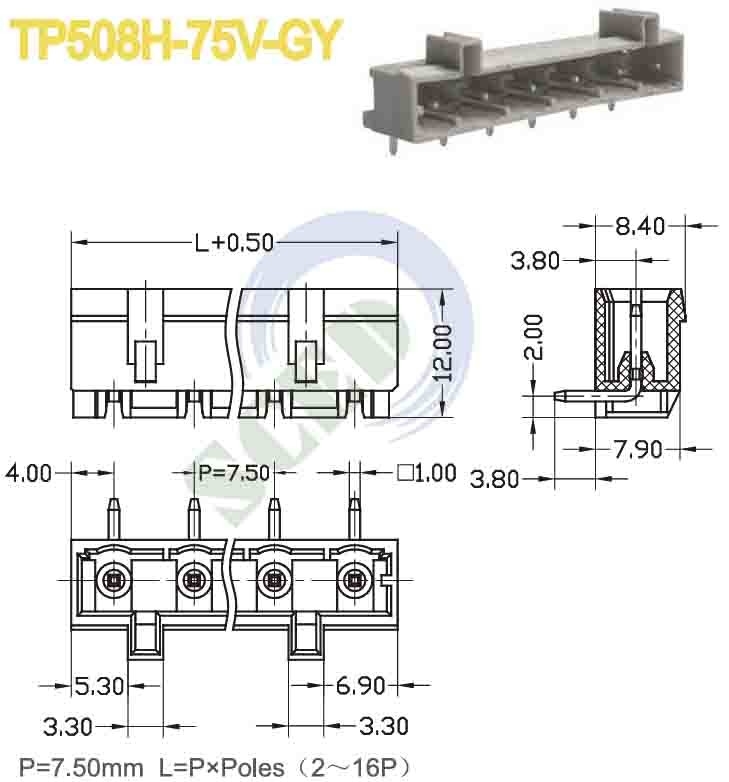

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/10 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 1.4 | ||
| Pin Dimension mm | 1.0*1.0 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..
