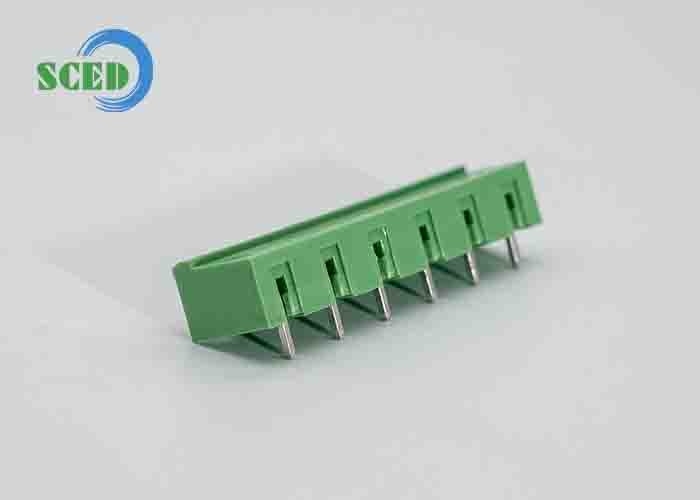

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal

Products - Plug In Terminal Block
  • Highlight

    7.62mm Plug In Terminal Block

    ,

    PA66 Plug In Terminal Block

    ,

    Electrical Plug In Terminal Block

  • Wire Inlet
    Right Angle Wire Inlet
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Green
  • Number Of Contacts
    2P-16P
  • Pitch
    7.62mm
  • Rated Current
    18A
  • Rated Voltage
    300V
  • Type
    Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-76V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal

  • Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
  • Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
  • Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
Get Price Contact Now



Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

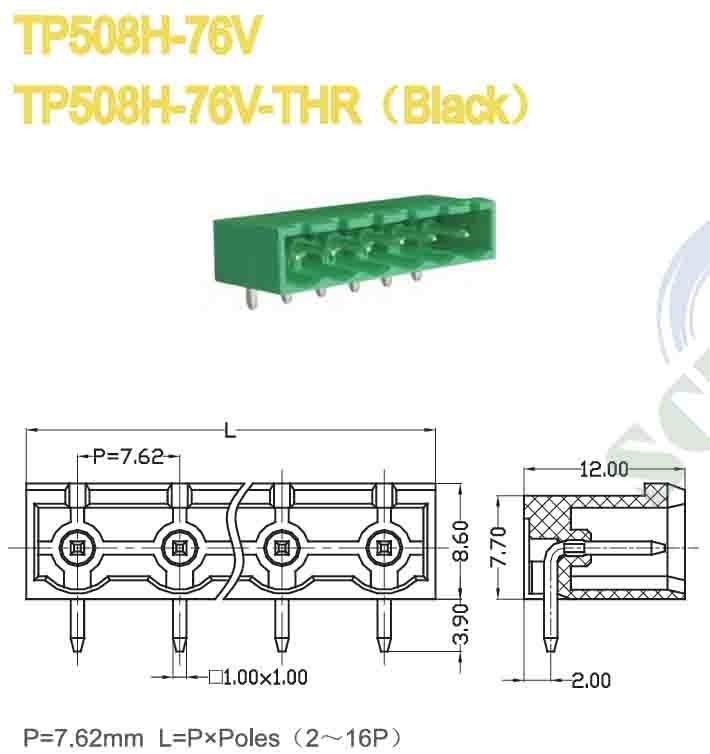

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 10

Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage                 KV

6

6

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0





 Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal 1



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
