Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block

Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block

Products - Barrier Terminal Block
  • Highlight

    Steel Barrier Terminal Block

    ,

    Pitch 14.50mm Barrier Terminal Block

    ,

    M5 Power Terminal Block

  • Pitch
    14.50mm
  • Gold Plating
    Tin Plated
  • Rated Voltage
    600V
  • Operating Temperature
    -40°C To +105°C
  • Screws
    M5.Steel.Zinc Plated
  • Item
    Barrier
  • Plastic
    PBT
  • Rated Connecting
    6mm²
  • Available Poles
    4-14 Poles
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1450-00-A3-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block

  • Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block
  • Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block
  • Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block
Get Price Contact Now

Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block​

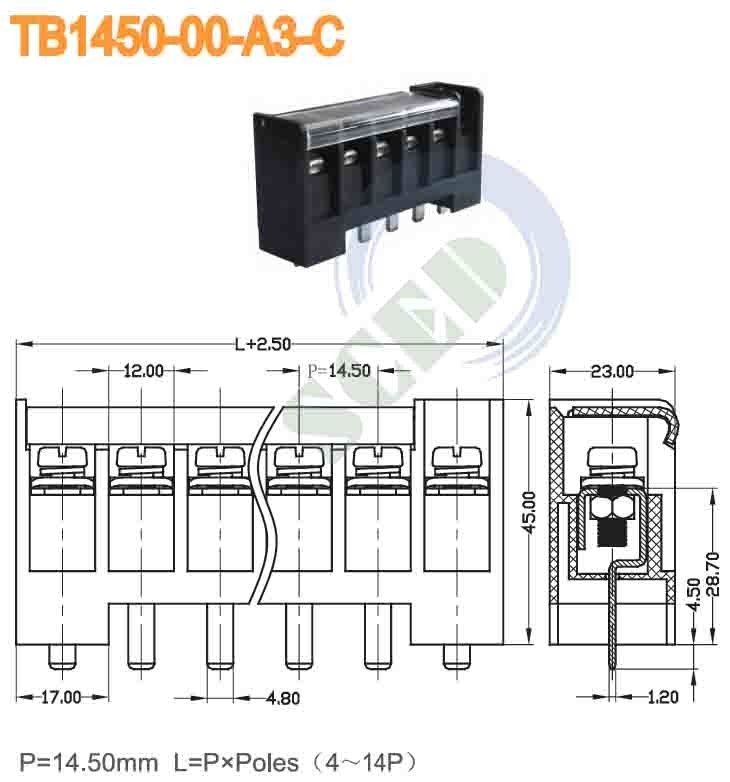

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 22-8 22-8 22-8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 0 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm 1.6*5.2
Stripping Length mm 12-15
Screw / Torque / lbf.in M5 / 18-20




Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block 0


Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:



Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block 1

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal Block Pitch 14.50mm 600V 40A 4-14P Steel M5 Power Terminal Block 2
