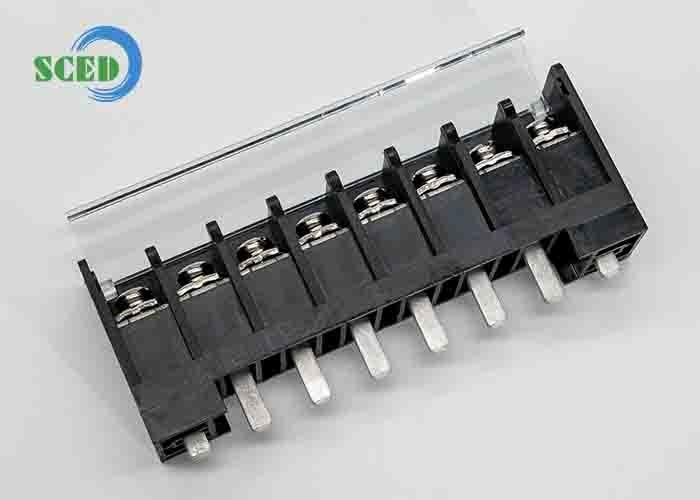

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

Products - Barrier Terminal Block
  • Highlight

    4-14P Barrier Terminal Block Connector

    ,

    PBT Barrier Terminal Block Connector

    ,

    M5 Barrier Terminal Block Connector

  • Available Poles
    4-14 Poles
  • Item
    Barrier
  • Wire Range
    22-6 AWG
  • Material
    PBT
  • Color
    Black
  • Operating Temperature
    -40°C ~ 105°C
  • Terminal
    Brass
  • Rated Current
    57A
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB1450a-05-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

  • Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block
  • Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block
  • Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block
Get Price Contact Now

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block PBT M5 22-6 AWG Power Terminal Block

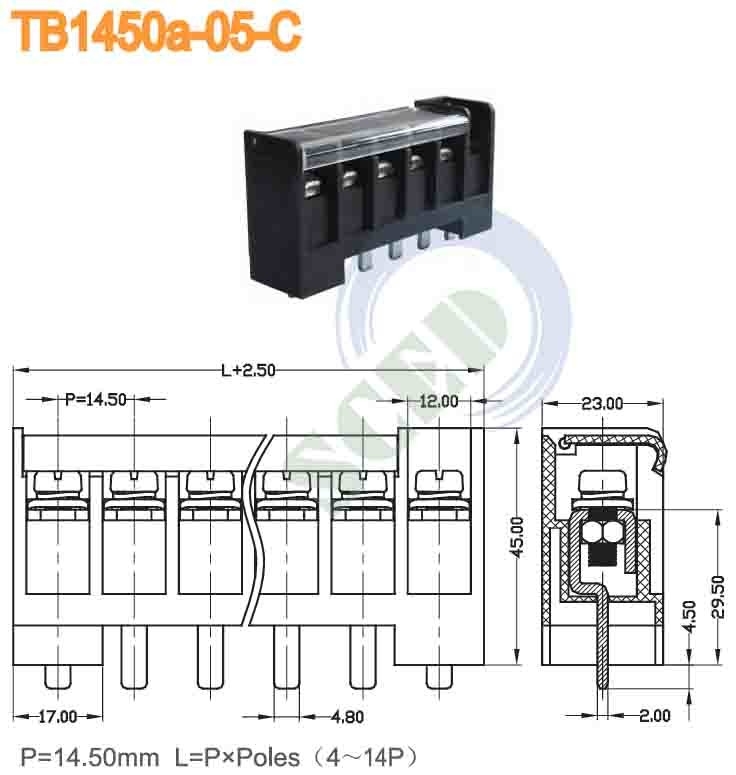

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 5
Wire Range AWG 20-6 20-6 20-6
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 7
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4*5.2
Stripping Length mm 12-15
Screw / Torque / lbf.in M5 / 18-20





Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block 2
