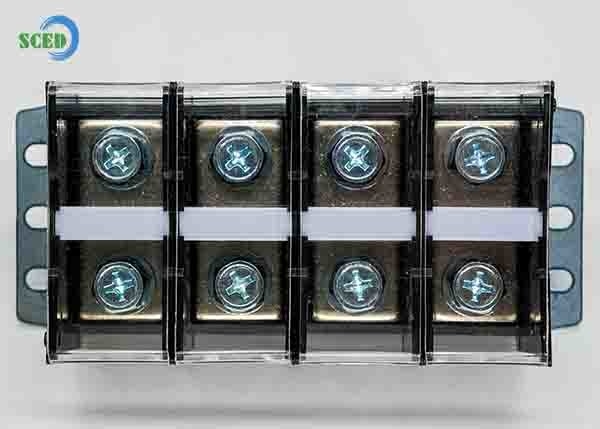

36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site

36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site

Products - Panel Mount Terminal Block
  • Highlight

    panel mount barrier terminal block

    ,

    PC Panel Mount Terminal Block

    ,

    Server Site Panel Mount Terminal Block

  • Type
    Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block
  • Pitch
    36.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4/0-20
  • Rated Voltage
    600V
  • Rated Current
    200A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR200-01-BCM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site

  • 36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site
  • 36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site
  • 36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site
Get Price Contact Now

36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site​

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:
36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

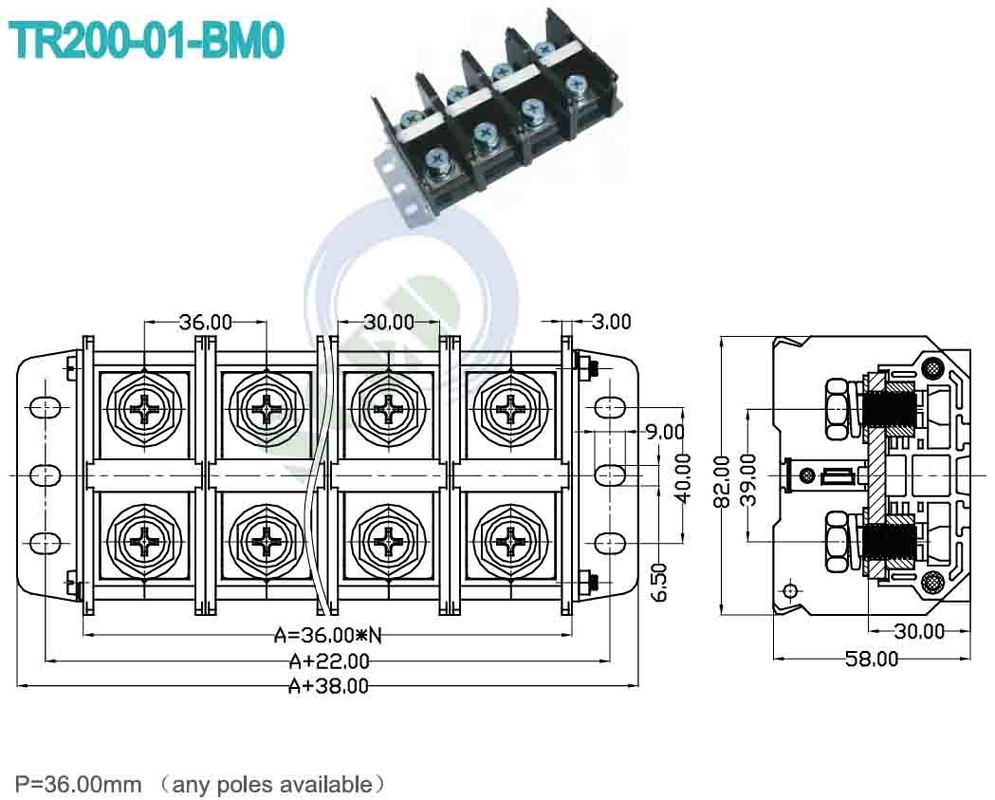

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 200

600 / 200



Wire Range                       AWG

4/0-20

4/0-20



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /200

1000 / 200

1000 / 200

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

100

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

14-18

Screw Torque                    mm

M10 / 50-60




36.00mm 600V PCB PC Panel Mount Barrier Large Power Terminal Block Connectors For Server Site 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
