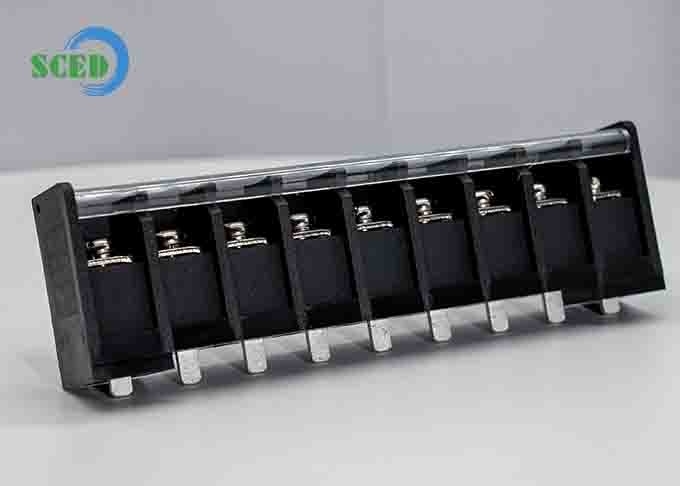

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

Products - Power Terminal Blocks
  • Highlight

    M5 Power Terminal Blocks

    ,

    600V power terminal connector block

    ,

    Automotive Power Terminal Blocks

  • Pole
    9
  • Voltage
    600V
  • Torque
    18-20 Lbf.in
  • Operate Temperature
    ﹣40°C~ ＋120°C
  • Pitch
    17.00mm
  • Terminal
    Brass
  • Screw
    M5 , Steel Ni Plated
  • Insulation Material
    PBT
  • Insulation Grade
    PA66, UL94,V-0
  • Terminal Body
    Brass, Tin Plated
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1450a-06-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

  • 17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive
  • 17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive
  • 17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive
Get Price Contact Now



17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive

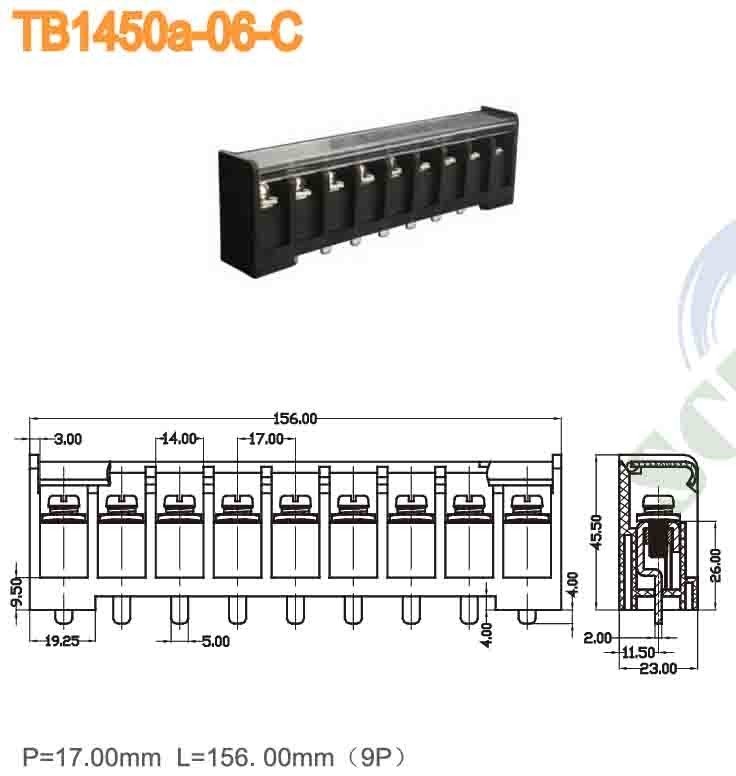

Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 5
Wire Range AWG 20-6 20-6 20-6
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4*5.4
Stripping Length mm 12-16
Screw / Torque / lbf.in M5 / 18-20





17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive 0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:







17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand





17.00mm Power Terminal Blocks PBT M5 600V Terminal Connector Block For Automotive 2
