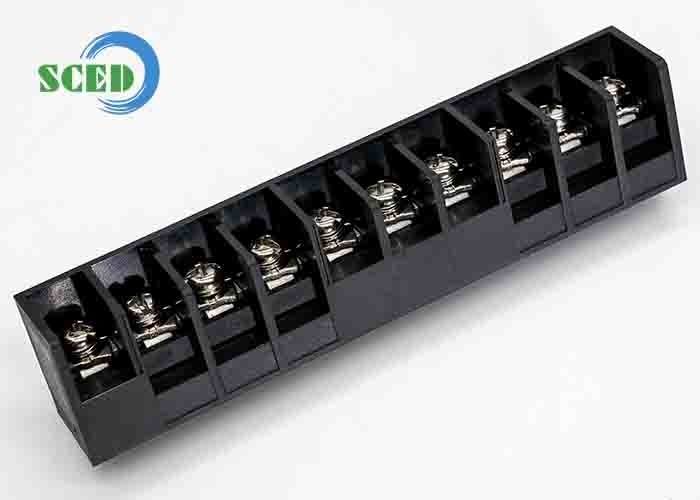

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

Products - Power Terminal Blocks
  • Highlight

    14.50mm Pitch Power Terminal Connector Block

    ,

    Nickel Plated Power Terminal Connector Block

    ,

    PBT Power Terminal Connector Block

  • Contact Material
    Brass
  • Pole
    10 Poles
  • Inflammability Class
    UL94-V0
  • Insulation Grade
    PA66, UL94, V0
  • Approvals
    UL, CE, VDE
  • Rated Connecting Capacity
    6 Mm2
  • Rated Voltage
    600V
  • Insulation
    PBT
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL,CE,CQC
  • Model Number
    TB1450a-07
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch

  • Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch
  • Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch
  • Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch
Get Price Contact Now



Nickel Plated PBT M5 Power Terminal Blocks 600V 57A With High Voltage 14.50mm Pitch

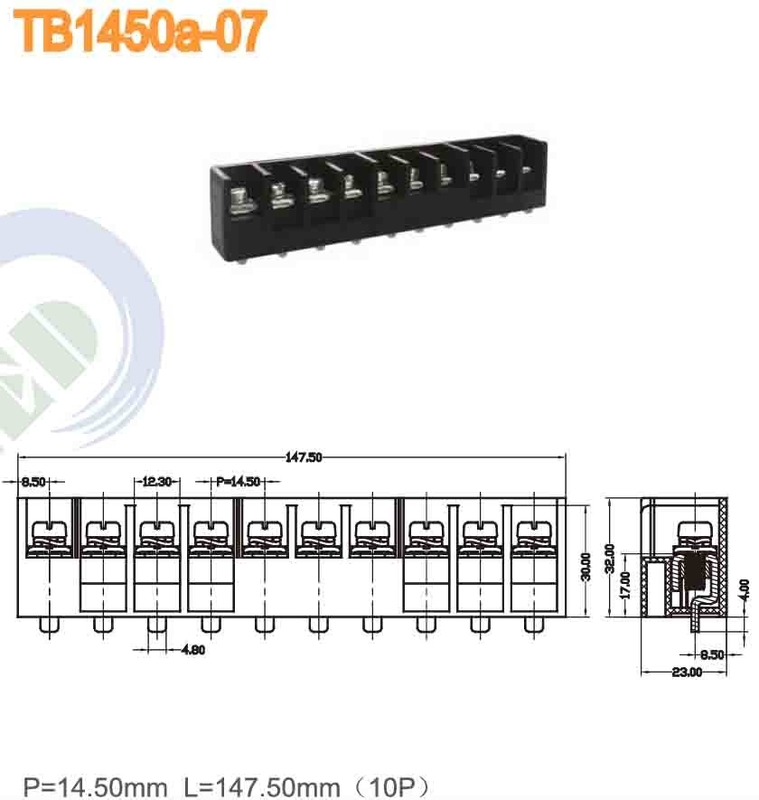

Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 57
Wire Range AWG 22-6 22-6 22-6
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4*5.2
Stripping Length mm 12-14
Screw / Torque / lbf.in M5 / 18-20







Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Nickel Plated PBT M5 Power Terminal Connector Block 600V 57A With High Voltage 14.50mm Pitch 2
