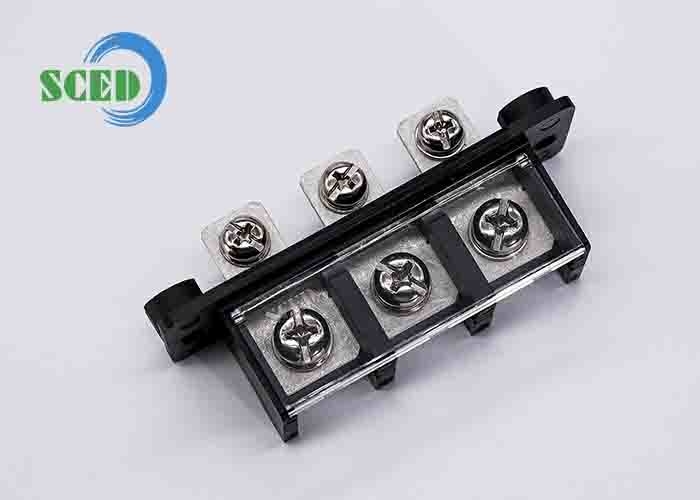

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

Products - Barrier Terminal Block
  • Highlight

    PBT barrier terminal blocks single row

    ,

    M5 Terminal Block Connector

    ,

    3P barrier terminal blocks single row

  • Material
    PBT
  • Color
    Black
  • Current Rating
    65A
  • Available Poles
    3 Poles
  • Rated Voltage
    600V
  • Certifications
    CE, RoHS
  • Wire Range
    26-4
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB2000-03F-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

  • Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector
  • Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector
  • Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector
Get Price Contact Now

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block PBT M5 Power Terminal Block​

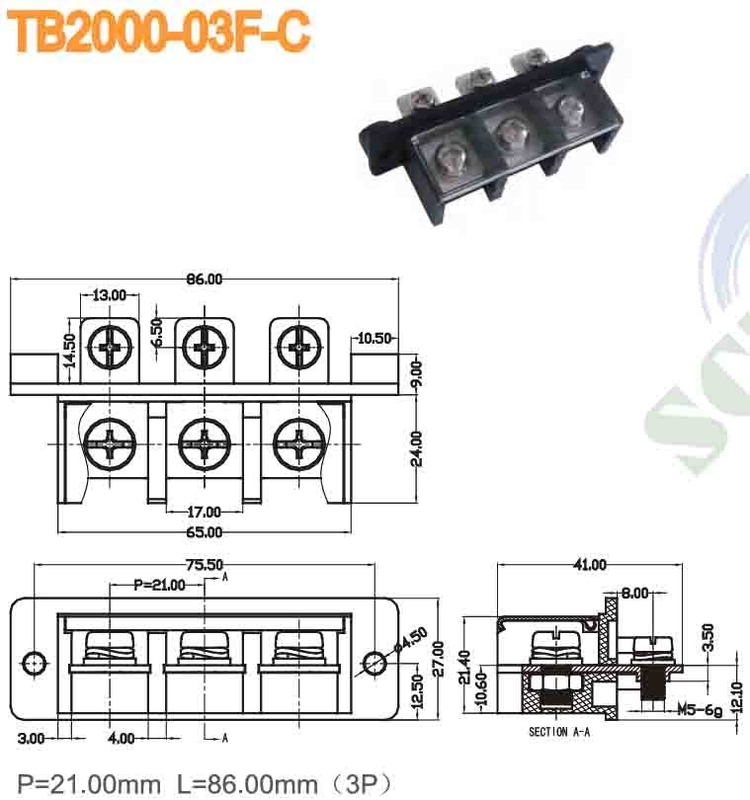

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 65 600 / 65 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 65 500 / 65 800 / 65
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 4.0x13.4
Stripping Length mm 15-17
Screw / Torque / lbf.in M 5 /16-18,M6/20-22





Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector 2
