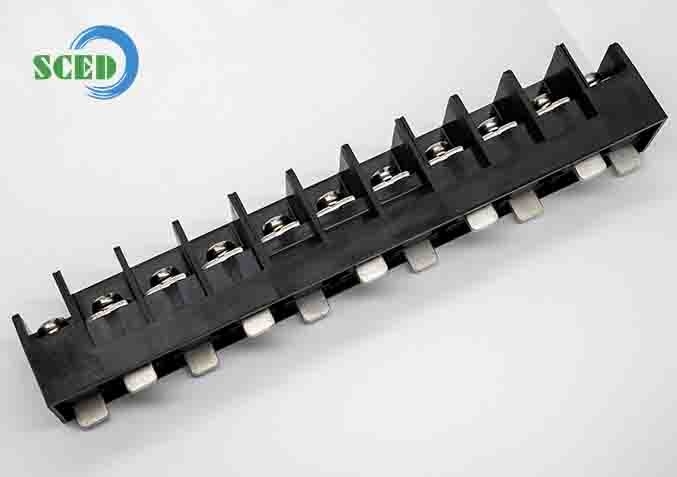

Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row
-
Highlight
M6 Barrier Terminal Blocks Single Row
,11P Barrier Terminal Blocks Single Row
,600V 100A Barrier Terminal Blocks
-
Operating Temperature-40°C To +105°C
-
Wire Range18-3 AWG
-
Current600V
-
ScrewSteel
-
Termination MethodScrew Clamp
-
Terminal MaterialBrass
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE, CQC
-
Model NumberTB2100-00
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row
Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks

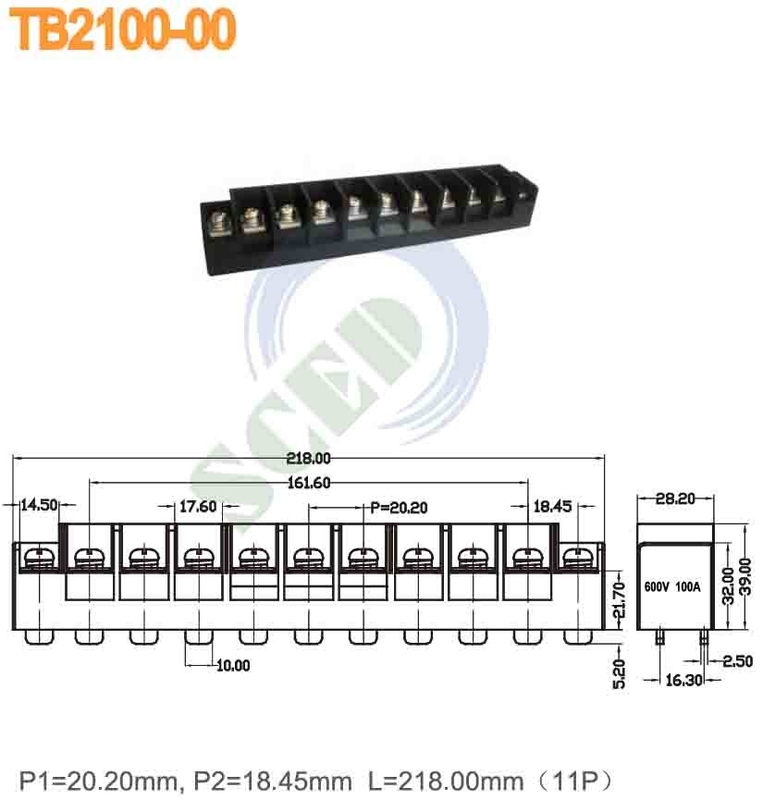

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 100 | 600 / 100 | 600 / 5 |
| Wire Range AWG | 18-3 | 18-3 | 18-3 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 100 | 1000 / 100 | 1000 / 100 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 25 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.9*10.4 | ||
| Stripping Length mm | 17-19 | ||
| Screw / Torque / lbf.in | M6 /20-22 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
