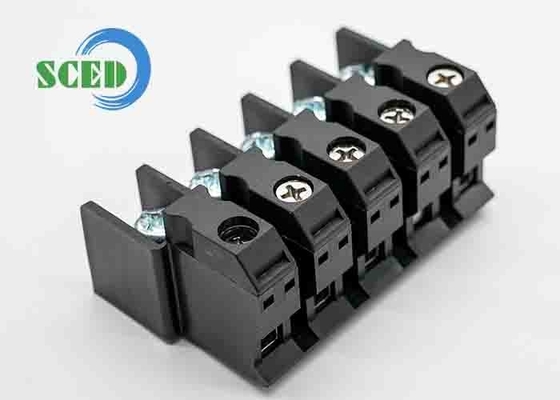

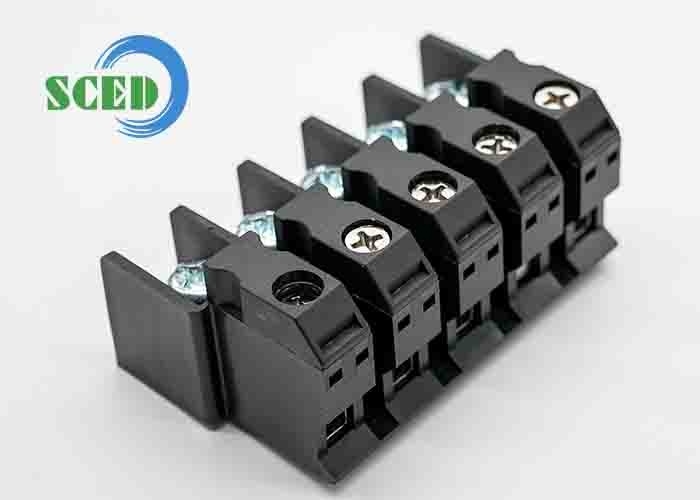

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG

Products - Panel Mount Terminal Block
  • Highlight

    PA66 Perforation Terminal Block

    ,

    Perforation Feed Through Terminal Block

    ,

    M5 Perforation Terminal Block

  • Pitch
    15mm
  • Current
    90A
  • Voltage
    600V
  • Screw
    M5
  • Torque
    14-6 Lbf.in
  • Plastic
    PA66
  • Insulation Material
    UL94-V0
  • Stripping Length
    10-12mm
  • Wire Range
    4-20 AWG
  • Conduction Board
    Brass
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TD90-00
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 1.143-2.286 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG

  • Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
  • Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
  • Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
Get Price Contact Now

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG



Detailed product Description:



Pitch 15.0mm, 600V 90A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■ Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 90 600 / 90
Wire Range AWG 4-20 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 90 1000 / 90 1000 / 90
Rated Surge Voltage KV 8 8 6
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 10-12
Screw / Torque / lbf.in M5 / 14-16



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

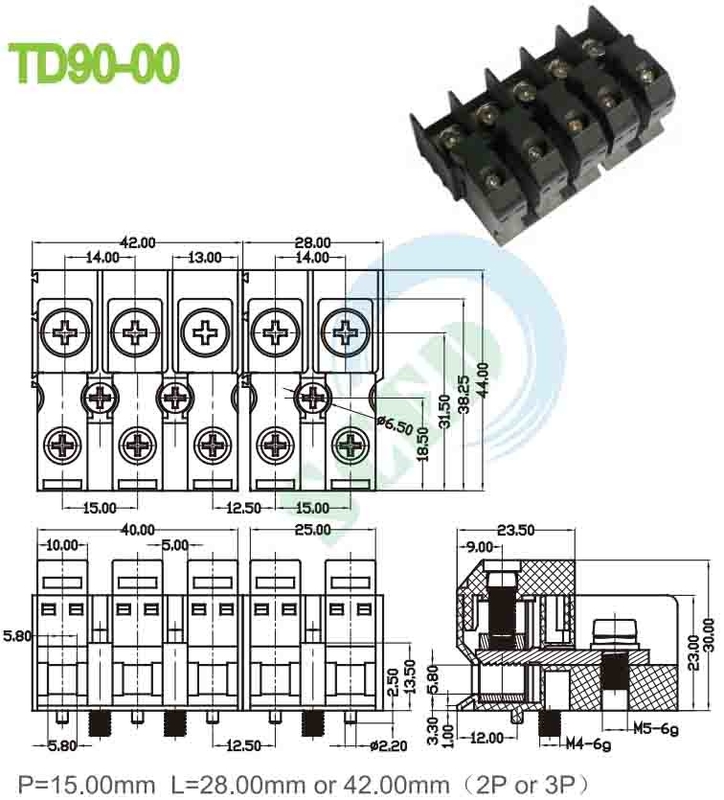

Drawing Photo


Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG 1
