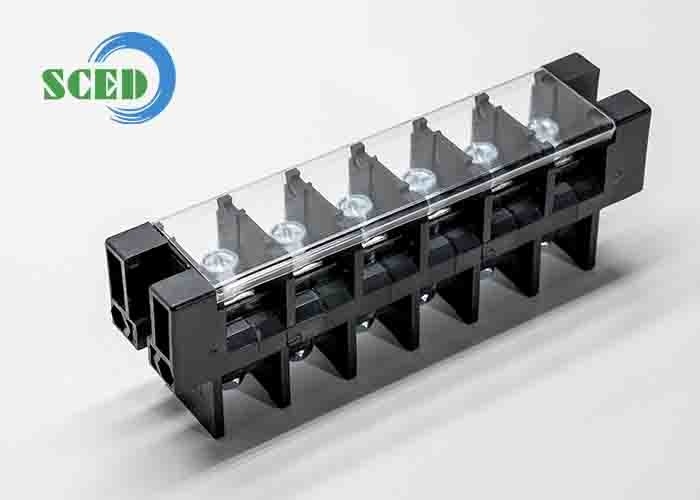

101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
Detailed product Description:
Pitch 21.0mm, 600V 101A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors
■ Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

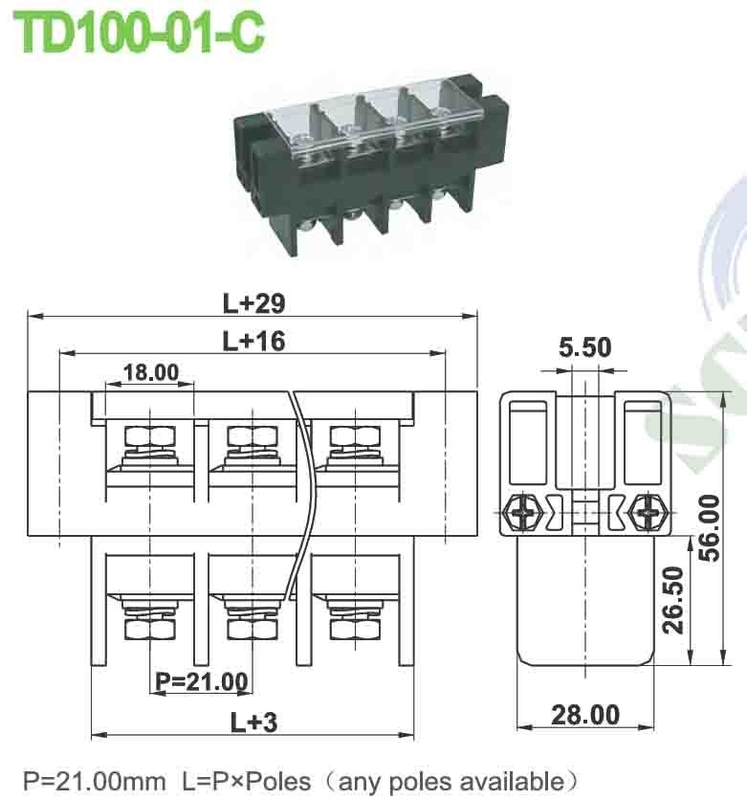

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 101 | 600 / 101 | 600 / 5 |
| Wire Range AWG | 2-20 | 2-20 | 2-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 101 | 1000 / 101 | 1000 / 101 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 25 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Conduction Board / Plating | Brass / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 11-12 | ||
| Screw / Torque / lbf.in | M6 / 20-22 | ||
Competitive Advantage:
Drawing Photo
