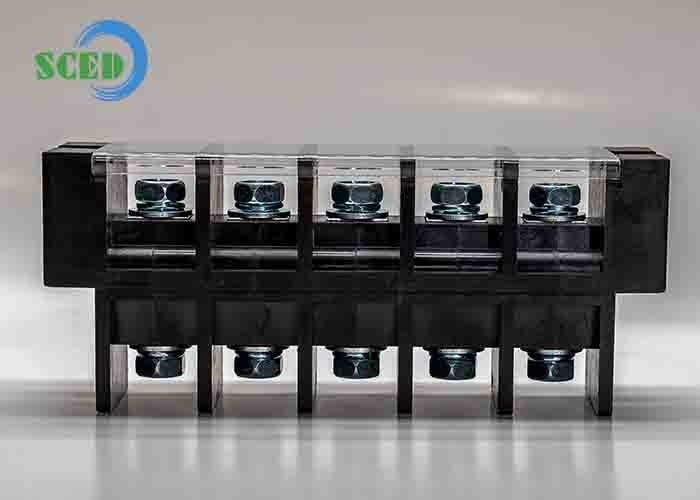

150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw

150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw

Products - Panel Mount Terminal Block
  • Highlight

    Pitch 27.0mm Power Terminal Block Connector

    ,

    M8 Power Terminal Block Connector

    ,

    PBT Power Terminal Block Connector

  • Current
    150A
  • Voltage
    600V
  • Pitch
    27mm
  • Screw
    M8
  • Torque
    31-40 Lbf.in
  • Stripping Length
    16-18 Mm
  • Plastic
    PBT
  • Inflammability Class
    UL94-V0
  • Conduction Board
    Brass
  • Wire Range
    30-1/0 AWG
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,CUL, UL, CQC, VDE etc.
  • Model Number
    TD150-01-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.233-0.466 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw

  • 150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw
  • 150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw
  • 150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw
Get Price Contact Now



150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw



Detailed product Description:



Pitch 27.0mm, 600V 150A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors



Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:



150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw 0

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 30-1/0 30-1/0
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 50
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 16-18
Screw / Torque / lbf.in M8 / 31-40



Competitive Advantage:



  1. Quickly response
  2. Full range products for selection
  3. Flexible to design the exact part per customers’ demand
  4. Stable quality and competitive price

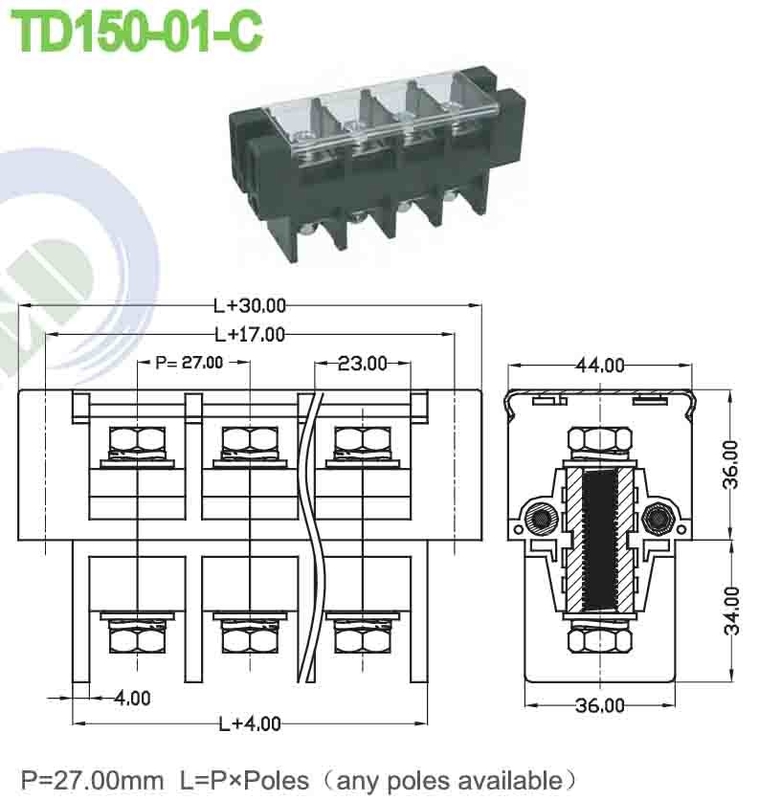

Drawing Photo


150A PBT Power Terminal Block Connector Perforation Pitch 27.0mm M8 Screw 1
