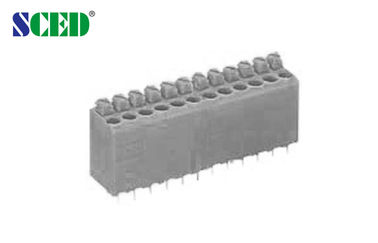

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

Products - Spring Terminal Block
  • Highlight

    wiring terminal blocks

    ,

    pcb spring terminal block

  • Name
    Electrical Terminal Block
  • Operating Temperature
    -40--+105 Degree
  • Current
    5A
  • Available Poles
    2-28 Poles
  • Volt
    300 V
  • Level
    1 Level
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Pitch
    3.5 Mm
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC, VDE etc.
  • Model Number
    TJ381-06
  • Minimum Order Quantity
    500 Pc/Pcs
  • Price
    US $ 0.07 - 0.11 / Pole
  • Packaging Details
    Standard export carton
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month frequency converters spring terminal block

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

  • Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles
  • Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles
Get Price Contact Now

Detailed product Description:



Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, Screwless terminals

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10





Wire Range                       AWG

16-20





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

9-10

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles 0



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
