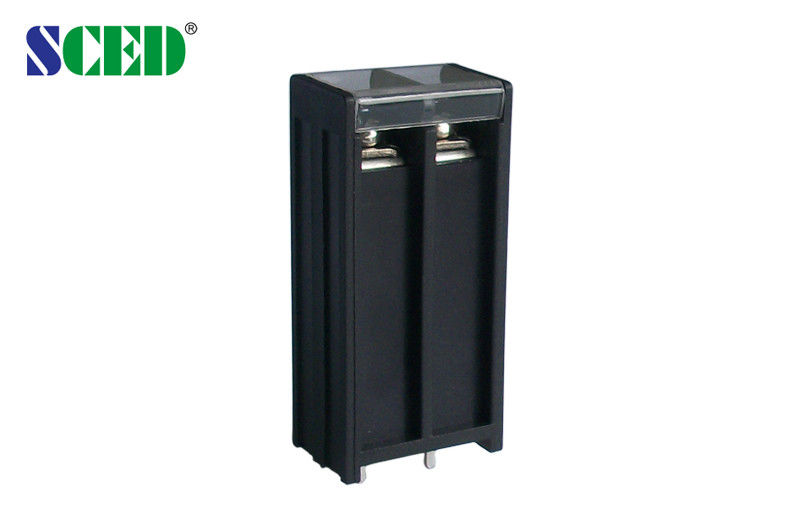

Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles

Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles

Products - Barrier Terminal Block
  • Highlight

    2 Poles Barrier Terminal Block

    ,

    Plastic Barrier Terminal Block

    ,

    20A Barrier Terminal Block

  • Plastic
    PBT
  • Inflammability Class
    UL94,V0
  • Voltage
    300V
  • Current
    20A
  • Type
    Barrier
  • Terminal
    Brass
  • Poles
    2 Poles
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TB1000-05-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.127-0.203 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles

  • Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles
  • Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles
Get Price Contact Now

Pitch 10mm Barrier Terminal Block 300V 20A Brass Plastic Black





Detailed product Description:



Pitch 10.00mm, 300V 20A, 2P, Barrier Terminal blocks, power terminal block

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

 'o�/� �h� :"Verdana","sans-serif";mso-bidi-font-family:Verdana'>



■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20



300 / 10

Wire Range                       AWG

10-18



10-18

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 41

600 / 41

800 / 41

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ2.0

Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 4 / 10-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.Pitch 10mm Barrier Type Terminal Block 20A Plastic Black 2 Poles 0
