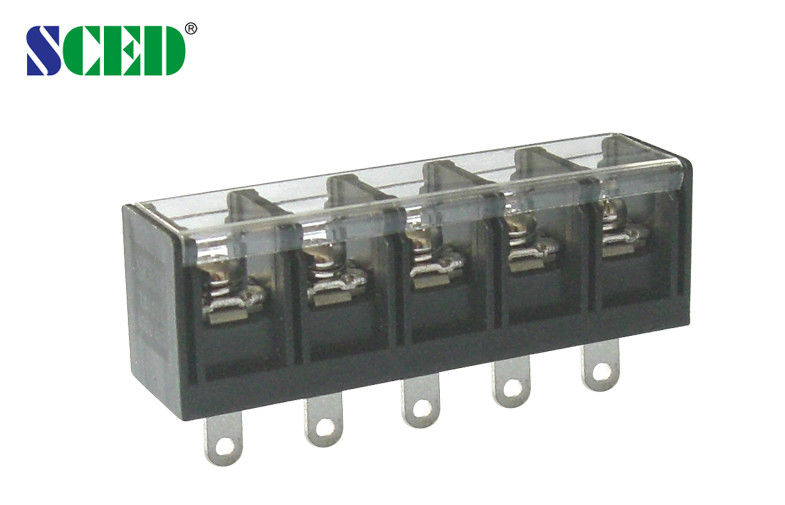

High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

Products - Barrier Terminal Block
  • Highlight

    Plastic Cover Barrier Terminal Block

    ,

    2-12 Poles Barrier Terminal Block

    ,

    40A Barrier Terminal Block

  • Poles
    2-12 Poles
  • Pitch
    13mm
  • Insulation Material
    PBT
  • Color
    Black
  • Screw
    M4
  • Torque
    10.6-13 Lbf.in
  • PCB Hole Dia.
    1.4*5.4mm
  • Inflammability Class
    UL94-V0
  • Voltage
    600V
  • Current
    40A
  • Place of Origin
    Guangdong,CN
  • Brand Name
    SCED
  • Certification
    UL
  • Model Number
    TB1300-00-D3-C
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.08-0.165 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

  • High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
  • High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
Get Price Contact Now

High Voltage Barrier Terminal Block Plastic Cover 40A Brass 2-12 Poles 20-8 AWG





Detailed product Description:



Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet

■Single Level

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG 0

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 20-8 20-8 20-8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 1.4x5.4
Stripping Length mm 10-11
Screw / Torque / lbf.in M 4 / 10.6-13





Applications:



PCB, Power Supply, Electrical Equipments, Medical Equipments, Automation, Security, Industrial Control, Server Site, Communication etc.





Competitive Advantage:



  1. More than 1000 models for selection
  2. OEM and ODM service
  3. High quality and competitive price
  4. Quick response

High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG 1
