| Place of Origin: | Guangdong, China |
| Brand Name: | SCED |
| Certification: | CE, UL, CUL, CQC, VDE etc. |
| Model Number: | TP508H-01V |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.016-0.032 Per Pole |
| Packaging Details: | Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Color: | Green | Pitch: | 5.08mm |
|---|---|---|---|
| Poles: | 2-22 Poles | Voltage: | 300V |
| Current: | 18A | Plastic: | PA66 |
| Imflammability: | UL94 V0 | Terminal: | Brass |
| Contamination Class: | 4 | Plating: | Tin Plated |
| High Light: | 5.08mm Power Distribution Terminal Block,PA66 Power Distribution Terminal Block,300V Power Distribution Terminal Block |
||

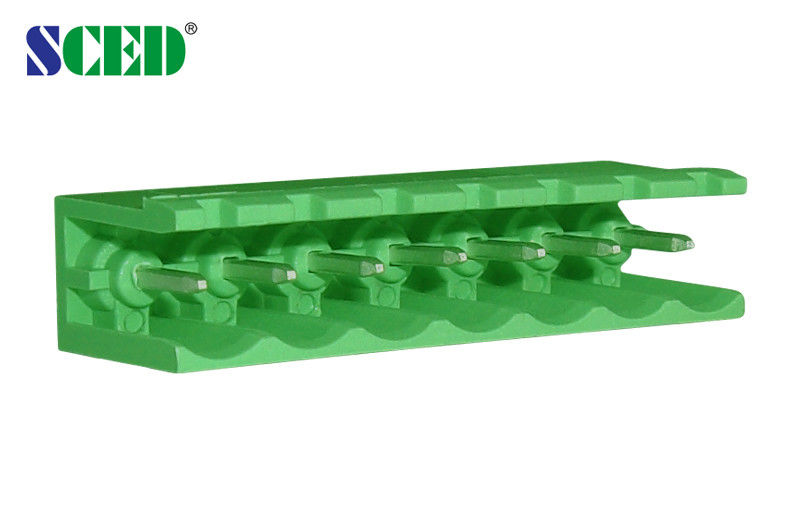

18A Plug In Terminal Block 300V Pitch 5.08mm Male Parts PA66
Detailed product Description:
Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply
2.Electric Lighting, Industry Control, Automation, Rail Transportation
3.Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/18 |
|
300/18 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
400 / 18 |
500 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
Pin Dimension mm |
1.0 x 1.0 |
||
Competitive Advantage:
Contact Person: Liceen Cheng
Tel: +8618118782877
Fax: +86-755-28769522
