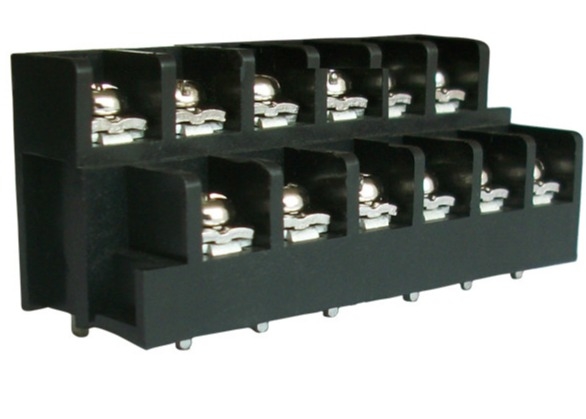

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

Products - Barrier Terminal Block
  • Highlight

    PA66 Barrier Terminal Block

    ,

    Two Levels Barrier Terminal Block

    ,

    Pitch 11mm Barrier Terminal Block

  • Material
    Brass
  • Current
    30A
  • Voltage
    300V
  • Type
    Barrier
  • Available Poles
    2-22 Poles
  • Inflammability Class
    UL94, V-0
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Pitch
    11.00 Mm
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    CE，UL，CUL，VDE，CQC etc.
  • Model Number
    TB1100-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.153-0.203
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

  • 20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels
  • 20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels
Get Price Contact Now

20A Barrier Terminal Block 300V Pitch 11mm Plastic PA66 Brass Two Levels





Detailed product Description:



Pitch 11.00mm, 300V 30A, 4*2P-16*2P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

12-24



12-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

800 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ2.3

Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 4 / 10-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
