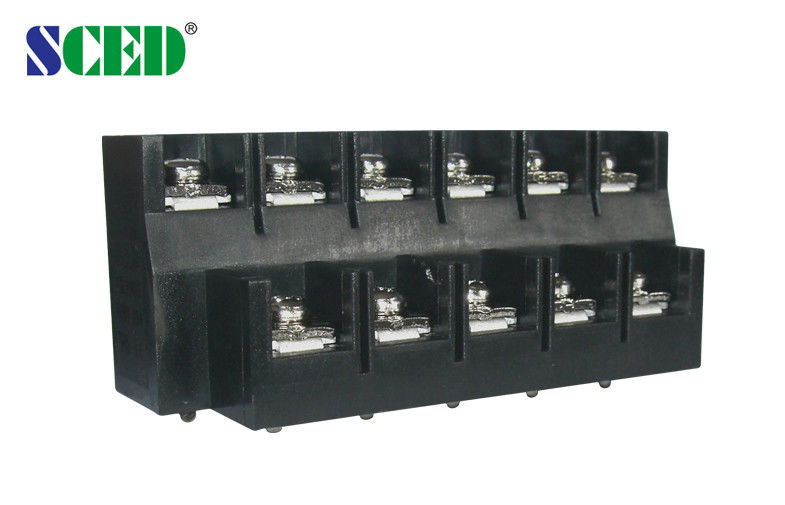

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass

Products - Barrier Terminal Block
  • Highlight

    600V Barrier Terminal Block

    ,

    2 Rows Barrier Terminal Block

    ,

    American Type Barrier Terminal Block

  • Poles
    11 Poles
  • Voltage
    600V
  • Current
    40A
  • Pitch
    13mm
  • Wire Range
    20-8 AWG
  • Screw
    M4
  • Torque
    10.6-13 Lbf.in
  • Contact Resistance
    Less Than 8mΩ
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE, CUL, CQC etc.
  • Model Number
    TB1300-02
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 1.269-2.528 PER PC
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass

  • 2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass
  • 2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass
  • 2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass
Get Price Contact Now

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass



Detailed product Description:



Pitch 13.00mm, 600V 40A, 11*2P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

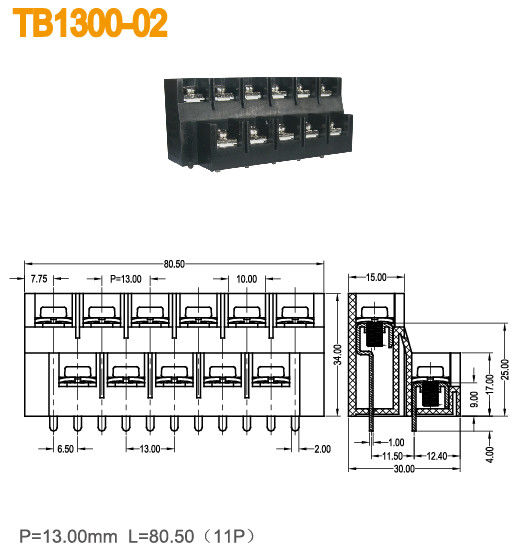

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 20-8 20-8 20-8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 7-9
Screw / Torque / lbf.in M 4 / 10.6-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

2 Rows Barrier Terminal Block American Type 600V/40A 11 Poles 13mm Pitch Brass 1
