Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles

  • Highlight

    300V/18A Plug In Terminal Block

    ,

    2-22 Poles Plug In Terminal Block

    ,

    5.08mm Plug In Terminal Block

  • Type
    Male Part
  • Pitch
    5.08mm
  • Poles
    2-22 Poles Available
  • Current
    18A
  • Voltage
    300V
  • Plastic
    PA66
  • Terminal
    Brass
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TP508H-00VF
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.015-0.032 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles



Detailed product Description:

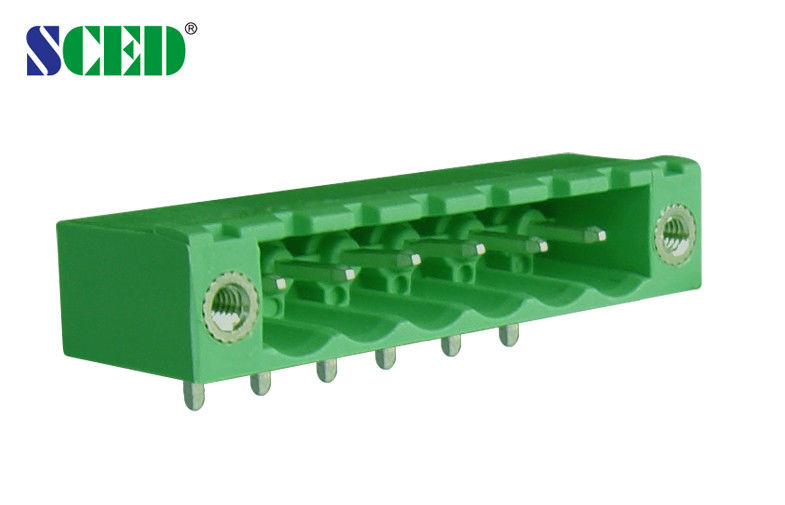

Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F


Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level; □Double Levels; □Triple Levels



Standard color: Green.



Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles 0

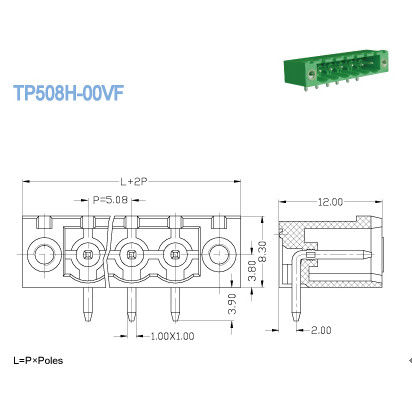

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0







Applications:

Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medical Equipment and Military and so on.



Competitive Advantage:



  1. Competitive price
  2. Full range products for selection
  3. OEM and ODM service
  4. Stable high quality

Male Sockets Plug In Terminal Block Pitch 5.08mm 300V/18A 2-22 Poles 1
