| Place of Origin: | Guangdong, China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | TB1000-05-C |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.127-0.203 Per Pole |
| Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Plastic: | PBT | Inflammability Class: | UL94,V0 |
|---|---|---|---|
| Voltage: | 300V | Current: | 20A |
| Type: | Barrier | Terminal: | Brass |
| Poles: | 2 Poles | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Insulation Resistance: | Above DC500V, 500MΩ | Contact Resistance: | Less Than 8mΩ |
| High Light: | 300V Barrier Terminal Block,UL Barrier Terminal Block,Pitch 10mm Barrier Terminal Block |
||

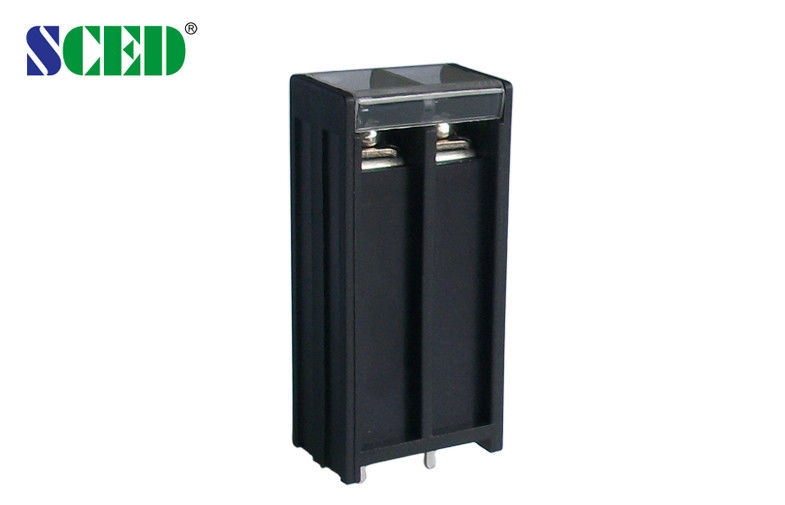

Pitch 10mm Barrier Terminal Block 300V 20A Brass Plastic Black
Detailed product Description:
Pitch 10.00mm, 300V 20A, 2P, Barrier Terminal blocks, power terminal block
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
'o�/� �h� :"Verdana","sans-serif";mso-bidi-font-family:Verdana'>
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 20 |
|
300 / 10 |
|
Wire Range AWG |
10-18 |
|
10-18 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 / 41 |
600 / 41 |
800 / 41 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
6 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.0 |
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M 4 / 10-13 |
||
Competitive Advantage:
