85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

Products - Panel Mount Terminal Block
  • Highlight

    UL94-V0 Panel Mount Terminal Block

    ,

    600V Panel Mount Terminal Block

    ,

    85A Panel Mount Terminal Block

  • Terminal Width
    12.1mm
  • Plastic
    PA66
  • Current
    85A
  • Voltage
    600V
  • Conduction Board
    Copper
  • Plating
    Tin Plated
  • Screw
    Steel
  • Contact Resistance
    Less Than 8mΩ
  • Wire Range
    4-20 AWG
  • Stripping Length
    16mm
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CE,CQC and VDE etc.
  • Model Number
    TR-16N-03
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.45-0.92
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

  • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
  • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
  • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
Get Price Contact Now

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width



Detailed product Description:



Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Deck;  □Double decks;  □Triple decks

Standard color: Black. Other colors also available.



Applications:

1. They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting, 2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.

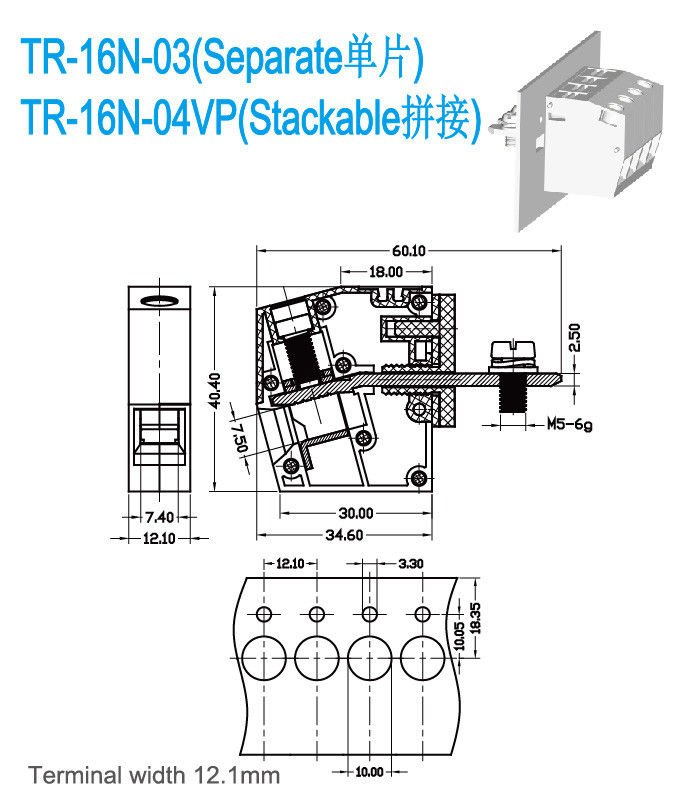

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85



600 / 5

Wire Range                       AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16

Screw / Torque                    / lbf.in

M5 / 22-25



ompetitive Advantage:



  1. good quality
  2. reasonable price
  3. good after-sales service
  4. full range products for selection
  5. Flexible to design the exact part per customers’ demand
