| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | CE，UL，CUL，VDE，CQC etc. |
| Model Number: | TB1100-02 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.153-0.203 |
| Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Material: | Brass | Current: | 30A |
|---|---|---|---|
| Voltage: | 300V | Type: | Barrier |
| Available Poles: | 2-22 Poles | Inflammability Class: | UL94, V-0 |
| Contact Resistance: | Less Than 8mΩ | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Pitch: | 11.00 Mm | Insulation Resistance: | Above DC500V, 500MΩ |

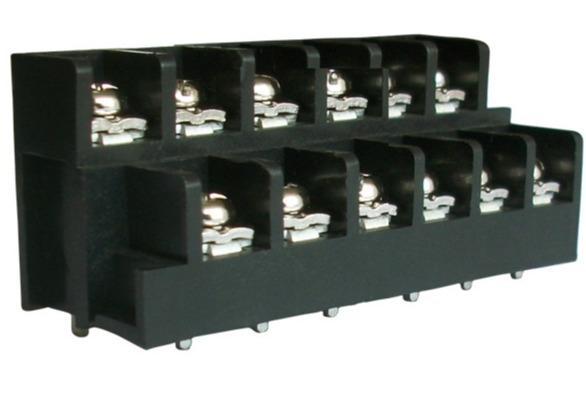

20A Barrier Terminal Block 300V Pitch 11mm Plastic PA66 Brass Two Levels
Detailed product Description:
Pitch 11.00mm, 300V 30A, 4*2P-16*2P, Barrier Terminal blocks, power terminal blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 30 |
|
300 / 10 |
|
Wire Range AWG |
12-24 |
|
12-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 32 |
800 / 32 |
1000 / 32 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.3 |
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M 4 / 10-13 |
||
