| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | CE,UL |
| Model Number: | TP381P-07 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.06-0.12 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Type: | Female Part | Pitch: | 3.81mm |
|---|---|---|---|
| Color: | Green | Poles: | 2-24 Poles |
| Current: | 8A | Voltage: | 300V |
| Screw: | M2 | Inflammability Class: | UL94-V0 |
| Stripping Length: | 7mm | Insulation Material: | PA66 |
| High Light: | 300V Plug In Terminal Block,10A Plug In Terminal Block,3.81mm Plug In Terminal Block |
||

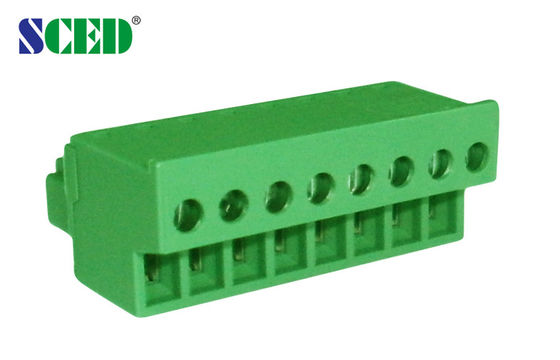

3.81mm Pitch Plug In Terminal Block Female Parts 300V 10A Green Color
Detailed product Description:
Plug, Female Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Zinc Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M2 / 2-2.2 | ||
Competitive Advantage:
Applications:
Military, Security, Medical Equipment, Communication, Automation, Industrial Control, Power Supply, PCB, Frequency Converters, Server Site, Switch etc..
