Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6

Products - Rail Mounted Terminal Blocks
  • Highlight

    Fixed Bridge Rail Mounted Terminal Blocks

    ,

    41A Rail Mounted Terminal Blocks

    ,

    Grey Rail Mounted Terminal Blocks

  • AWG
    30-10
  • Terminal Width
    6.2mm
  • Current
    600V
  • Volt
    30A
  • Inflammability Class
    Inflammability Class
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL, CE, CUL, VDE, CQC etc.
  • Model Number
    TR-5N
  • Minimum Order Quantity
    500 PCS
  • Price
    USD 0.153-0.244 per PCS
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6

  • Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6
  • Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6
  • Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6
Get Price Contact Now

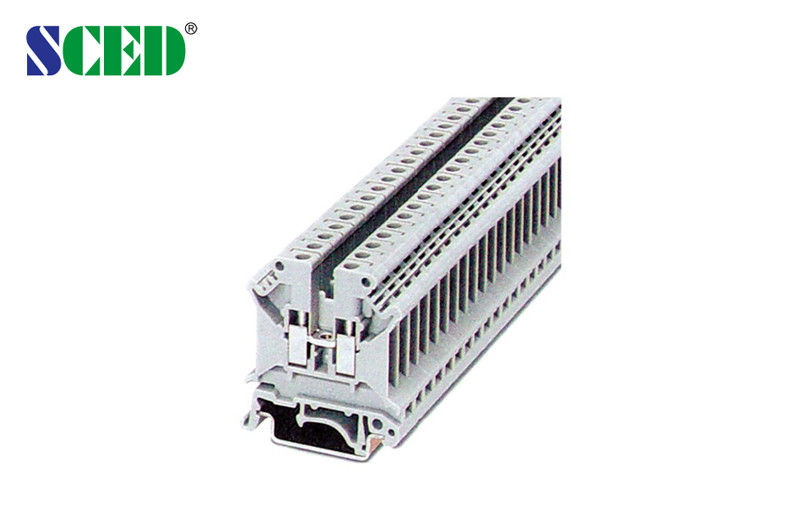

6mm2 Rail Mounted Terminal Blocks 600V 30A AWG:30-10 Terminal width 6.2mm





Detailed product Description:



Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

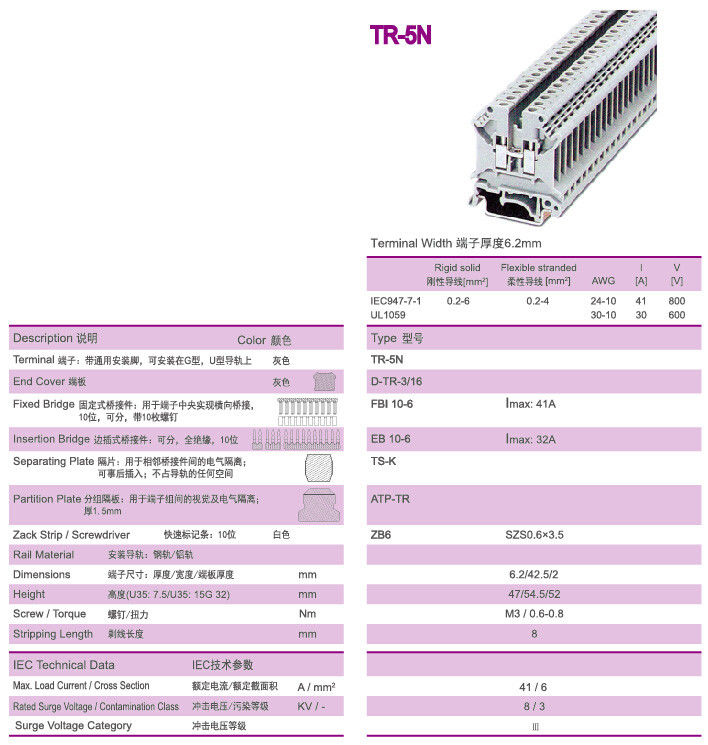

Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-5N

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 0End Cover                      Grey



D-TR-3/16

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 1Fixed Bridge



FBI 10-6        Imax: 41A

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 2Insertion Bridge



EB 10-6        Imax: 32A

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 3Separating Plate



TS-K

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 4Partition Plate



ATP-TR

Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             41 / 6

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

Ⅲ / Ⅰ



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demandGrey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 5
