Place of Origin: | China |
Brand Name: | SCED |
Certification: | UL,CE,CUL,CQC and VDE etc. |
Model Number: | TB952-00 |
Minimum Order Quantity: | 1000 Piece/Pieces |
---|---|
Price: | USD 0.048-0.11 |
Packaging Details: | Standard export packing carton, or according to customers demand |
Delivery Time: | 5-20 Working Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000000 Pole/Poles per Month |
Screw: | M4 | Torque: | 10-13 Lbf.in |
---|---|---|---|
Plastic: | PBT | Poles: | 2-24 Poles |
Current: | 20A | Voltage: | 300V |
Pitch: | 9.525mm | Imflammability Class: | UL94-V0 |
High Light: | Black PCB Terminal Blocks,UL94-V0 PCB Screw Terminal Block,M4 Screw PCB Terminal Blocks |

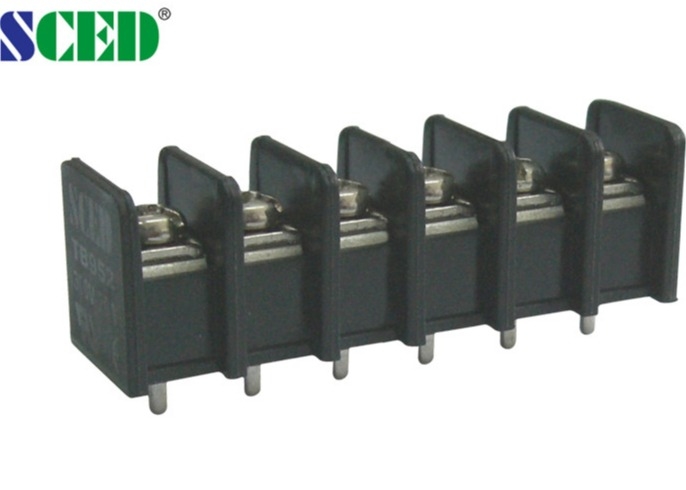

Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/20 | 300/10 | |
Wire Range AWG | 12-22 | 12-22 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 4 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ2.2 | ||
Stripping Length mm | 8-9 | ||
Screw / Torque / lbf.in | M 4/ 10-13 |
Competitive Advantage:
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
