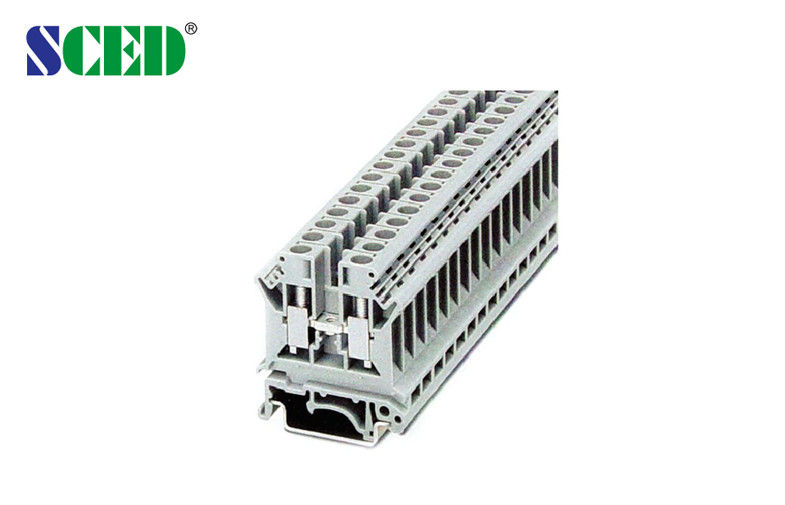

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail

Products - Rail Mounted Terminal Blocks
  • Highlight

    Right Angle Rail Mounted Terminal Blocks

    ,

    Width 8.2mm Rail Mounted Terminal Blocks

    ,

    Din Rail Right Angle Terminal Blocks

  • Current
    50A
  • Voltage
    600V
  • Wire Inlet
    Right Angle
  • Color
    Grey
  • Terminal Width
    8.2mm
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Screw
    M3
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CE, CQC,VDE etc.
  • Model Number
    TR-6N
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.169-0.338 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail

  • Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail
  • Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail
Get Price Contact Now

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width: 8.2mm Din Rail



Detailed product Description:



Terminal width: 8.2mm, 600V 50A, AWG:26-8, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-6N

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 0End Cover                      Grey



D-TR-3/16

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 1Fixed Bridge



FBI 10-8        Imax: 57A

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 2Insertion Bridge



EB 10-8        Imax: 57A

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 3Separating Plate



TS-K

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 4Partition Plate



ATP-TR

Zack Strip                      White

ZB8

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

8.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

10

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             57 / 10

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail 5
