| Place of Origin: | Guangdong,CN |
| Brand Name: | SCED |
| Certification: | UL |
| Model Number: | TB1300-00-D3-C |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.08-0.165 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Poles: | 2-12 Poles | Pitch: | 13mm |
|---|---|---|---|
| Insulation Material: | PBT | Color: | Black |
| Screw: | M4 | Torque: | 10.6-13 Lbf.in |
| PCB Hole Dia.: | 1.4*5.4mm | Inflammability Class: | UL94-V0 |
| Voltage: | 600V | Current: | 40A |
| High Light: | Plastic Cover Power Terminal Blocks,Power Terminal Blocks 8AWG,40A Brass Barrier Terminal Block |
||
High Voltage Barrier Terminal Block Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
Detailed product Description:
Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

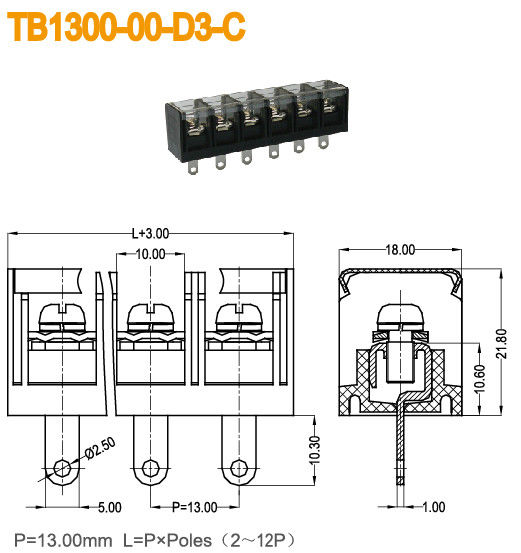

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 20-8 | 20-8 | 20-8 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 1.4x5.4 | ||
| Stripping Length mm | 10-11 | ||
| Screw / Torque / lbf.in | M 4 / 10.6-13 | ||
Applications:
PCB, Power Supply, Electrical Equipments, Medical Equipments, Automation, Security, Industrial Control, Server Site, Communication etc.
Competitive Advantage:
