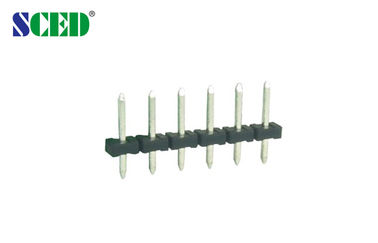

Electrical Connector Plug in Terminal Blocks / Terminal strip

Electrical Connector Plug in Terminal Blocks / Terminal strip

  • Highlight

    power distribution terminal block

    ,

    power terminal block connector

  • Imflammability
    UL 94, V-0
  • Voltage
    300V
  • Current
    18A
  • Pitch
    5.0mm
  • Poles
    2 - 20 P
  • Color
    Black, Other Color Available
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP500H-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Electrical Connector Plug in Terminal Blocks / Terminal strip

Electrical Connector Plug in Terminal Blocks / Terminal strip





Electrical Connector Plug in Terminal Blocks / Terminal strip 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/18



300/18

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

320 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Pin Dimension                      mm

1.3 x 1.3





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
