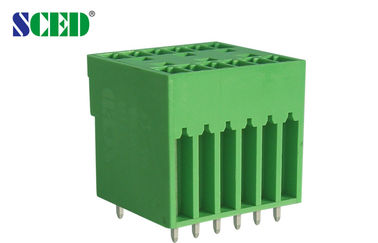

Header 2 decks Pitch 3.50mm Pluggable two levels , melamine terminal blocks

Header 2 decks Pitch 3.50mm Pluggable two levels , melamine terminal blocks

  • Highlight

    power distribution terminal block

    ,

    electric terminal block

  • Housing Material
    PA66
  • Terminal Material
    Brass
  • Pitch
    3.5mm
  • Contact Type
    Vertical
  • Current
    8A
  • Volt
    300V
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381H-22
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Header 2 decks Pitch 3.50mm Pluggable two levels , melamine terminal blocks

Header 2 decks Pitch 3.50mm Pluggable two levels , melamine terminal blocks



Header 2 decks Pitch 3.50mm Pluggable two levels , melamine terminal blocks 0





Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/8





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Pin Dimension                      mm

0.8 x 0.8

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
