Highlight
power distribution terminal block
,power terminal block connector
-
Pitch3.81mm
-
Current8A
-
Volt300V
-
CertificatesUL, CE
-
HousingPA66 / UL-94, V-0
-
ColorGreen
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP381H-00
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

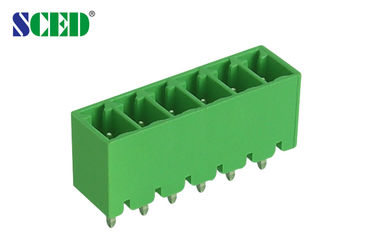

300V 8A 2P - 22P Pluggable Terminal Blocks Header Male Sockets
300V 8A 2P - 22P Pluggable Terminal Blocks Header Male Sockets
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
|
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
PinDimension mm |
0.8 x 0.8 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
