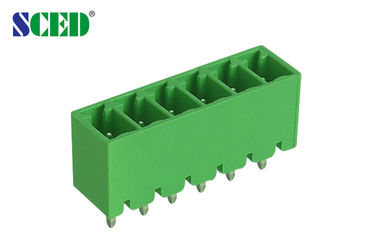

300V 8A Pluggable Terminal Blocks Pitch 3.81mm Male Sockets Vertical

300V 8A Pluggable Terminal Blocks Pitch 3.81mm Male Sockets Vertical

  • 300V 8A Pluggable Terminal Blocks Pitch 3.81mm Male Sockets Vertical
300V 8A Pluggable Terminal Blocks Pitch 3.81mm Male Sockets Vertical
Product Details:
Place of Origin: Shenzhen China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TP381H-00
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: USD 0.01-0.19 per pole
Packaging Details: Normally, one master carton packs 16 inner boxes inside. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each month
Contact Now
Detailed Product Description
Material: Brass Level: Single Level
Wire Inlet: Vertical Wire Inlet Color: Green
Pin Dimension: 0.8 X 0.8mm Insulation Material: PA66
Inflammability Class: UL94, V-0 PCB Hole Diameter: φ1.2mm
Pitch: 3.81mm Rated Voltage / Current: 300V 8A
High Light:

Vertical Wire Inlet Pluggable Terminal Blocks

,

Male Sockets Pluggable Terminal Blocks

,

300V 8A Plug In Terminal Block

300V 8A Power Distribution Terminal Block Pitch 3.81mm Male Sockets Vertical



Detailed product Description:



Header, Male Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double Levels;  □Triple Levels



This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04



Standard color: Green. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication

2.Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.2

PinDimension                     mm

0.8 x 0.8





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Good service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
