Place of Origin: | Guangdong,China |
Brand Name: | SCED |
Certification: | UL,CE |
Model Number: | AO-15/4J-N5 |
Minimum Order Quantity: | 1000 Piece/Pieces |
---|---|
Price: | USD 0.165-0.321 PER PC |
Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198m |
Delivery Time: | 5-20 Working Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000000 Pole/Poles per Month |

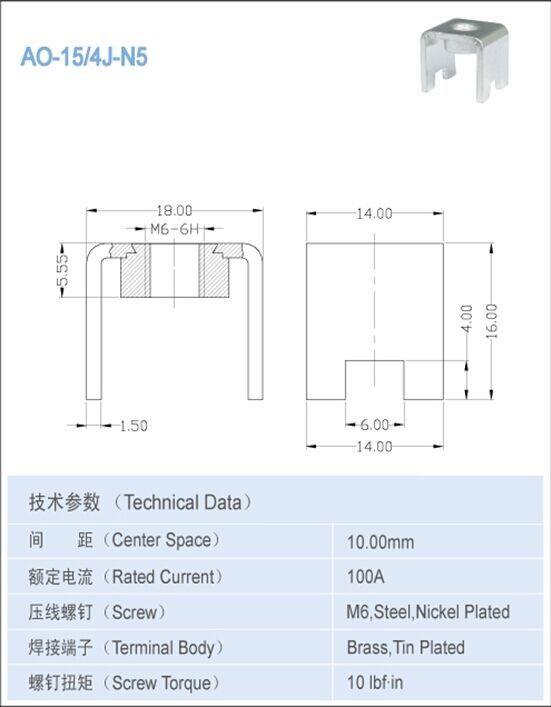

Center Space: | 10.0*16.5mm | Rated Current: | 100A |
---|---|---|---|
Screw: | M6 | Screw Torque: | 18 Lbf.in |
Terminal Body: | Brass | Terminal Body Plating: | Tin Plated |
Screw Material: | Steel | Screw Plating: | Nickel Plated |
High Light: | High Current Electrical Terminals Connectors,100A Electrical Terminals Connectors,M6 PCB Electronic Components |

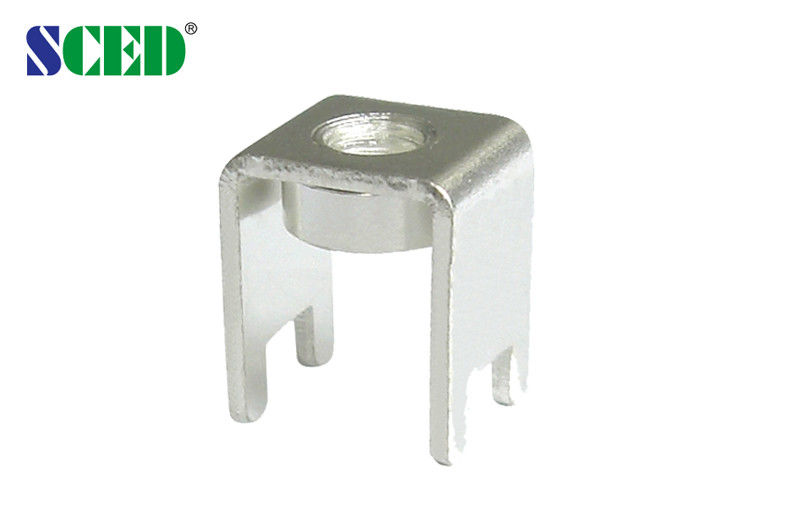

High Current Terminal Block Accessories 100A 10.0mm*16.5mm Space Electrical Components
Detailed product Description:
Terminal Accessories, PCB terminal, Electrical components
Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.
Applications:
Our products can be used in lots of fields and industries, such as: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
.
Competitive Advantage:
