11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT

11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT

  • 11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT
  • 11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT
11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL,CE,CUL,CQC and VDE etc.
Model Number: TB1100-15
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.052-0.13 per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Torque: 10.6-13 Lbf.in Screw: M4
Stripping Length: 10-12mm Plating: Tin And Zinc Plated
Terminal: Brass Plastic: PBT
Pitch: 11mm Poles: 2-12 Poles
Current: 20A Voltage: 600V
High Light:

Barrier Terminal Blocks 11mm Pitch

,

12 Poles Barrier Terminal Blocks

,

20A Barrier Power Terminal Blocks

20A Barrier Power Terminal Blocks Black 2-12 Poles Brass PBT 11mm Pitch



Detailed product Description:



Pitch 11.10mm, 600V 20A, 2P-12P, Barrier Terminal blocks, power terminal blocks

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Level: ■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.





How to order:



11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT 0

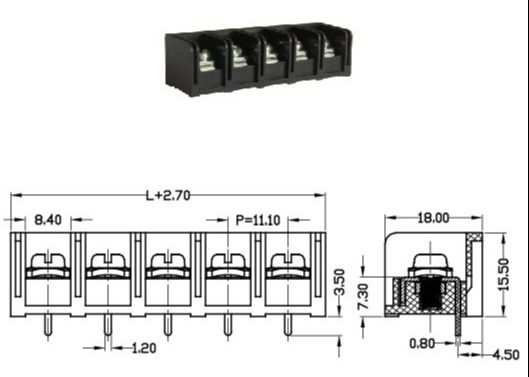

Parameter and Drawing Specifications:

UL Technical Data

B



C D
Rated Voltage / Current V/A 600 / 20 600 / 20 600 / 5
Wire Range AWG 12-22 12 / 22 12-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 20 800 / 20 1000 / 20
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 10-12
Screw / Torque / lbf.in M 4 / 10.6-13





Applications:



1. PCB, Frequency Converters, Server Site, Switch

2. Power Supply, Electric Lighting, Industry Control, Automation

3. Rail Transportation, Communication, Electric Power, Security, Medical Equipment, Military etc..



Competitive Advantage:



  1. High quality and competitive price
  2. Quickly response
  3. More than 1000 models for selection
  4. Flexible to design the exact part per customers’ demand

11mm Pitch Black 20A Barrier Terminal Blocks With 2-12 Poles Brass PBT 1
