Place of Origin: | Guangdong,China |
Brand Name: | SCED |
Certification: | UL,CUL,CE,CQC and VDE etc. |
Model Number: | TR-16N-03 |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.45-0.92 |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Delivery Time: | 5-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000000 Pole/Poles per Month |
Terminal Width: | 12.1mm | Plastic: | PA66 |
---|---|---|---|
Current: | 85A | Voltage: | 600V |
Conduction Board: | Copper | Plating: | Tin Plated |
Screw: | Steel | Contact Resistance: | Less Than 8mΩ |
Wire Range: | 4-20 AWG | Stripping Length: | 16mm |
High Light: | UL94-V0 Panel Mount Terminal Block,Panel Mount Terminal Block 85A,12.1mm Width Terminal Block |
85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
Detailed product Description:

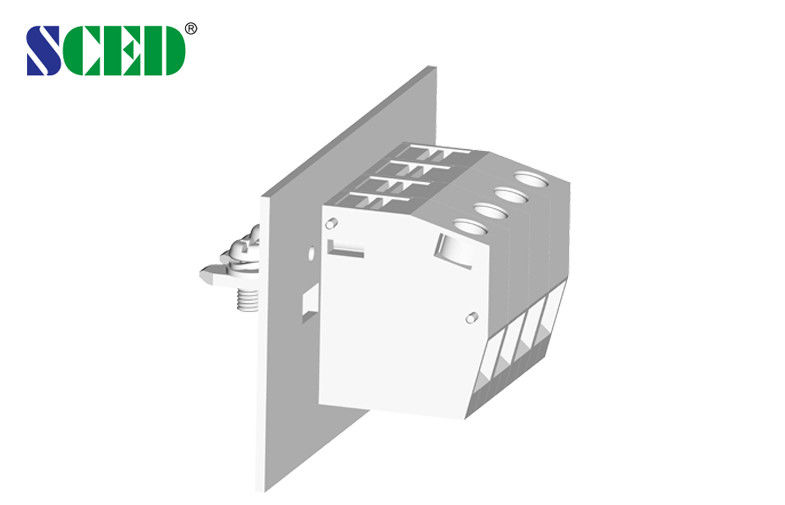

Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available.
Applications:
1. They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting, 2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.

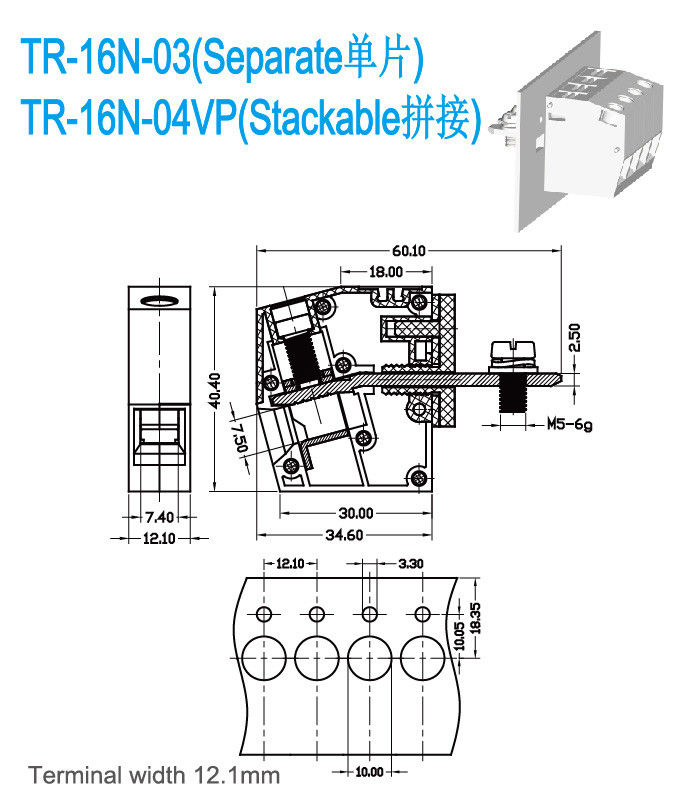

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 85 |
|
600 / 5 |
Wire Range AWG |
4-20 |
|
4-20 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
630 / 101 |
800 / 101 |
1000 / 101 |
Rated Surge Voltage KV |
6 |
6 |
6 |
Rated Connecting Capacity mm2 |
16 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Steel / Nickel Plated |
||
Conduction Board / Plating |
Copper / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
16 |
||
Screw / Torque / lbf.in |
M5 / 22-25 |
