| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | UL,CE,CUL,CQC and VDE etc. |
| Model Number: | TB1100-15 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.052-0.13 per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Torque: | 10.6-13 Lbf.in | Screw: | M4 |
|---|---|---|---|
| Stripping Length: | 10-12mm | Plating: | Tin And Zinc Plated |
| Terminal: | Brass | Plastic: | PBT |
| Pitch: | 11mm | Poles: | 2-12 Poles |
| Current: | 20A | Voltage: | 600V |
| High Light: | Black 20A Power Terminal Blocks,Power Terminal Blocks 11mm Pitch,12 Poles Power Terminal Blocks |
||

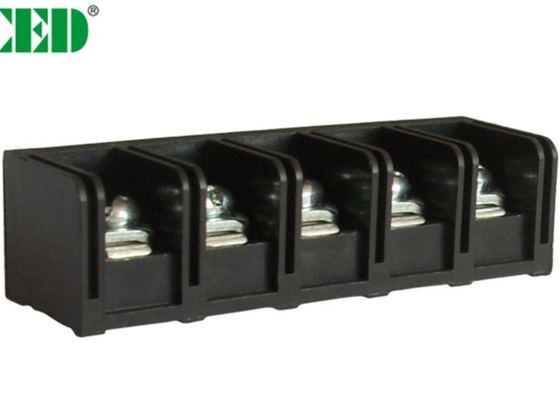

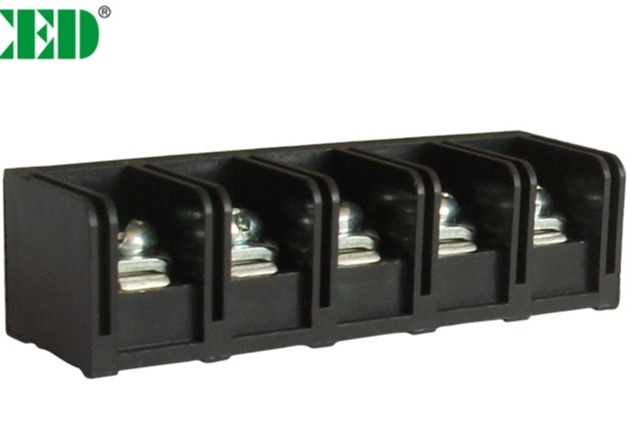

20A Barrier Power Terminal Blocks Black 2-12 Poles Brass PBT 11mm Pitch
Detailed product Description:
Pitch 11.10mm, 600V 20A, 2P-12P, Barrier Terminal blocks, power terminal blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Level: ■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

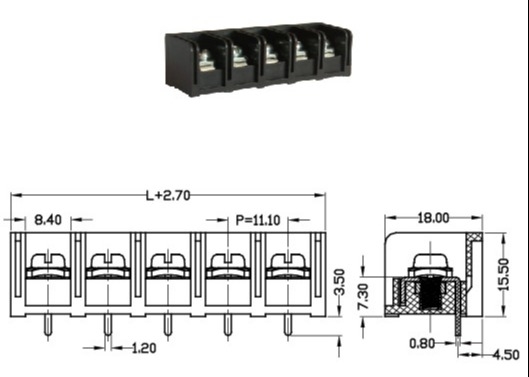

Parameter and Drawing Specifications:
| UL Technical Data |
B
|
C | D |
| Rated Voltage / Current V/A | 600 / 20 | 600 / 20 | 600 / 5 |
| Wire Range AWG | 12-22 | 12 / 22 | 12-22 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 20 | 800 / 20 | 1000 / 20 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.8 | ||
| Stripping Length mm | 10-12 | ||
| Screw / Torque / lbf.in | M 4 / 10.6-13 | ||
Applications:
1. PCB, Frequency Converters, Server Site, Switch
2. Power Supply, Electric Lighting, Industry Control, Automation
3. Rail Transportation, Communication, Electric Power, Security, Medical Equipment, Military etc..
Competitive Advantage:
