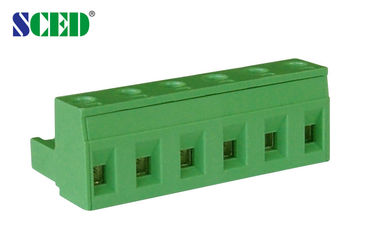

Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm

Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm

  • Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm
  • Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm
Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: CE,UL
Model Number: TP508P-76
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.06-0.12 PER Pole
Packaging Details: Standard export packing carton, or according to customers demand.
Delivery Time: 5-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Color: Green Pitch: 7.62mm
Type: Plug In Current: 8A
Voltage: 300V Poles: 2-24 Poles
Insulation Material: PA66 Screw: M2
Torque: 2-2.2 Lbf.in Clamp Cage: Brass
High Light:

Single Level Pluggable Terminal Blocks

,

PA66 Pluggable Terminal Blocks

,

7.62mm Plug In Terminal Block

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm



Detailed product Description:



Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V



Levels: ■Single Level



Standard color: Green.



Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

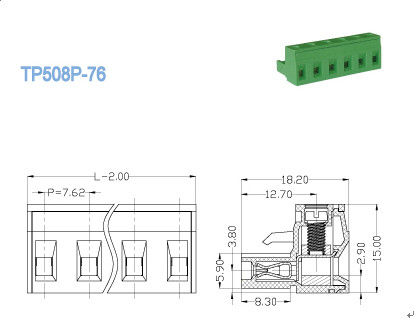

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 18   300 / 18
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. High quality
  2. Reasonable price
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand

Single Level Pluggable Terminal Blocks Brass Female Connectors Pitch 7.62mm 1
