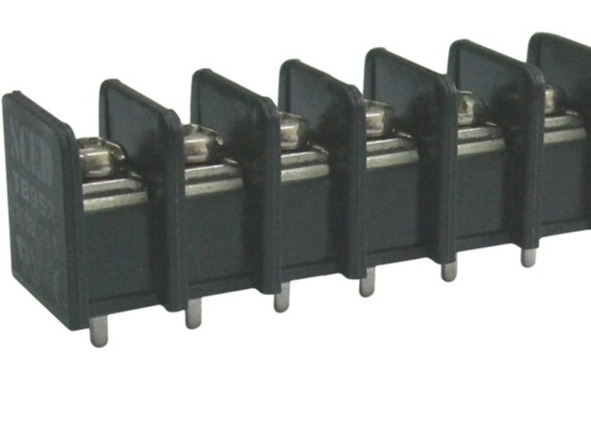

Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/20 | 300/10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 4/ 10-13 | ||
Competitive Advantage:
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
Our services cover all industries and reach all parts of the world.
