| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | UL,CE,CUL,CQC and VDE etc. |
| Model Number: | TB952-00 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.048-0.11 |
| Packaging Details: | Standard export packing carton, or according to customers demand |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Color: | Black | Screw: | M4 |
|---|---|---|---|
| Torque: | 10-13 Lbf.in | Plastic: | PBT |
| Poles: | 2-24 Poles | Current: | 20A |
| Voltage: | 300V | Pitch: | 9.525mm |
| High Light: | Barrier PCB Terminal Blocks,9.525mm Pitch PCB Terminal Blocks,Brass Barrier Terminal Block |
||

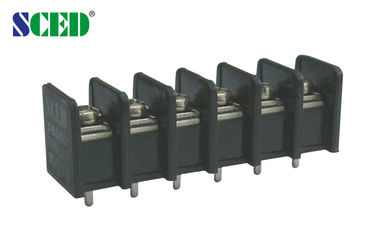

Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/20 | 300/10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 4/ 10-13 | ||
Competitive Advantage:
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
