| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | UL, CE, CUL, VDE, CQC etc. |
| Model Number: | TR-5N |
| Minimum Order Quantity: | 500 PCS |
|---|---|
| Price: | USD 0.153-0.244 per PCS |
| Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| AWG: | 30-10 | Terminal Width: | 6.2mm |
|---|---|---|---|
| Current: | 600V | Volt: | 30A |
| Inflammability Class: | Inflammability Class | Contact Resistance: | Less Than 8mΩ |
| Rated Surge Voltage: | No Abnormal Within 1 Minute | Insulation Resistance: | Above DC500V, 500MΩ |

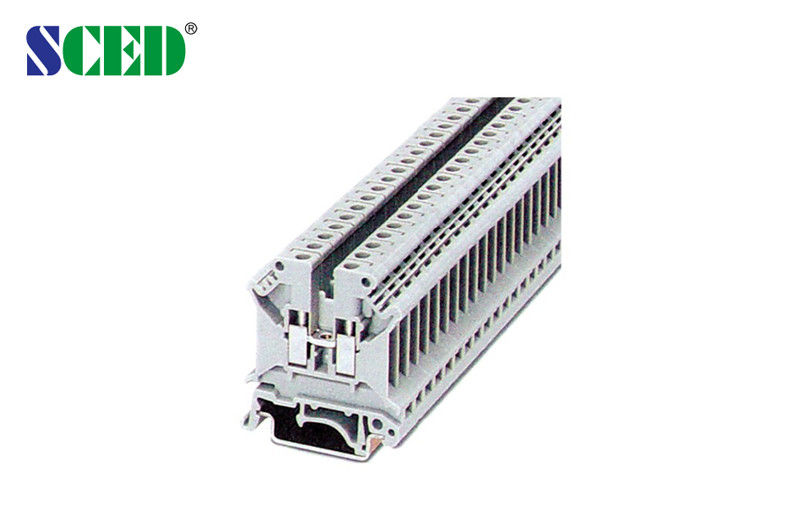

6mm2 Rail Mounted Terminal Blocks 600V 30A AWG:30-10 Terminal width 6.2mm
Detailed product Description:
Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

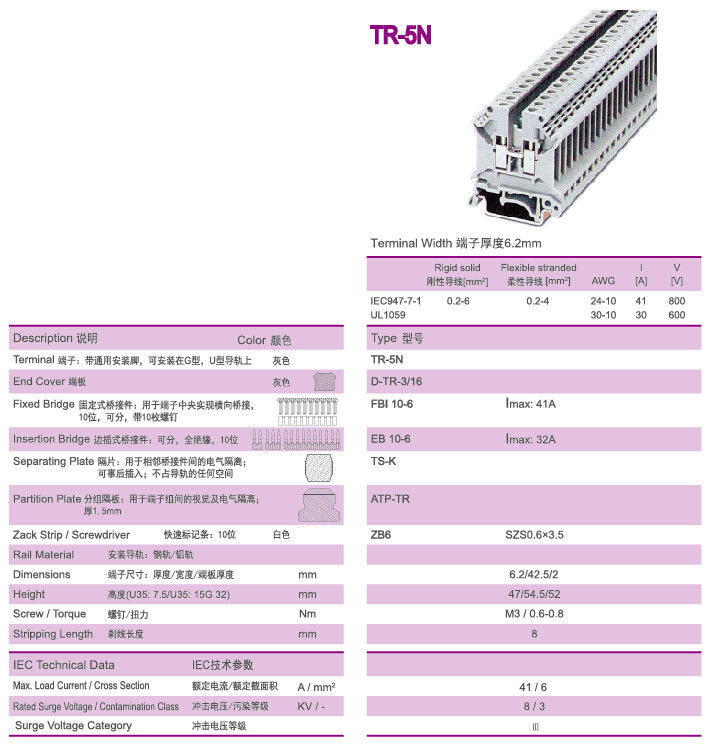

Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-5N |
|
|
D-TR-3/16 |
|
|
FBI 10-6 Imax: 41A |
|
|
EB 10-6 Imax: 32A |
|
|
TS-K |
|
|
ATP-TR |
|
Zack Strip White |
ZB6 |
|
Screwdriver |
SZS0.6×3.5 |
|
Rail Material |
aluminum |
|
Dimensions mm |
6.2/42.5/2 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Screw / Torque Nm |
M3 / 0.6-0.8 |
|
Stripping Length mm |
8 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
41 / 6 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ / Ⅰ |
Competitive Advantage:
