| Place of Origin: | Guangdong China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC, VDE etc. |
| Model Number: | TJ381-04 |
| Minimum Order Quantity: | 1000 Pc/Pcs |
|---|---|
| Price: | US $ 0.07 - 0.11 / Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm. |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Clamp Cage: | Brass | Pitch: | 3.81mm |
|---|---|---|---|
| Current:: | 16A | Terminal: | Copper |
| Volt:: | 300 V | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Plastic Housing: | UL94, V-0 | Insulation Resistance: | Above DC500V, 500MΩ |
| Contact Resistance: | Less Than 8mΩ | Stripping Length: | 5-6mm |

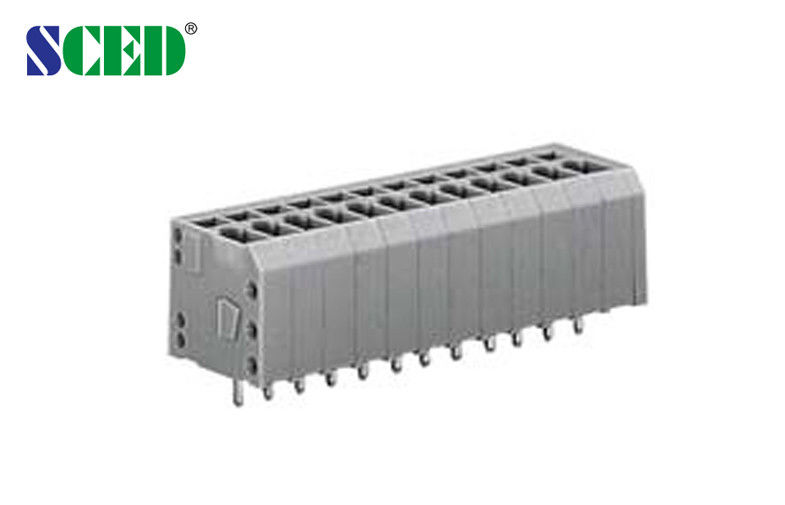

Brass Spring Terminal Block One Level 3.5mm Pitch PA66 UL94-V0
Detailed product Description:
Pitch 3.81mm, 300V 16A, 2P-28P, Spring Terminal blocks, Screwless terminals
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting
2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
PCB Spring Terminal Block UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/5 |
|
|
|
Wire Range AWG |
16-22 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 5 |
400 / 5 |
630 / 5 |
|
Rated Surge Voltage KV |
4 |
4 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring / Plating |
|
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
8-9 |
||
Competitive Advantage:
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
