Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

    • Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
    • Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
  • Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Spring Terminal Block Housing: PA66
    Wire Range: 14-26 AWG Voltage: 300V
    Current: 10A Terminal: Brass

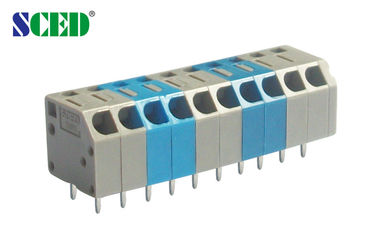

    Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block



    Quick Details:



    1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
    2. Diverse wire inlet direction
    3. Compact structure
    4. Simple operating
    5. Strong vibration resistance



    Spec.



    Pitch 3.50mm

    pushing button

    color: grey & blue

    spring clamp type



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10



    300/10

    Wire Range                                AWG

    14-26(sol) 16-26(str)



    14-26(sol) 16-26(str)

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    125 / 10

    250 / 10

    320 / 10

    Rated Surge Voltage                  KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity        mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter                mm

    φ1.2

    Stripping Length                    mm

    8-9



    Competitive Advantage:



    1. We have Stable good quality with CE RoHS

    2. Competitive price, We are factory.

    3. Quickly response, When we receive your inquiry, we will reply you within 24 hours.

    4. Full range products for selection, PCB Type, Barrier type, Screw Type, Panel Type, Feed through type.

    5. Flexible to design the exact part per customers’ demand, We also support the OEM, ODM,



    Applications:



    Frequency Converters,

    Server Site,

    Electric Power,

    Security, Military, Elevator, etc..



    Drawing:

    Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

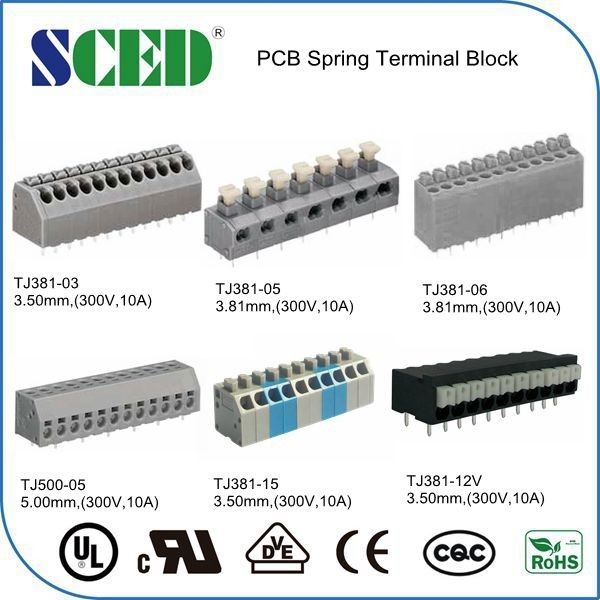

    Other series
