| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB952-02 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.048-0.088 PER Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
| Delivery Time: | 5-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 9.52mm | Wire Inlet: | Right Angle |
|---|---|---|---|
| Voltage: | 300V | Current: | 20A |
| Color: | Black | Plastic: | PBT |
| Metal Parts: | Brass | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Inflammability Class: | UL94, V-0 | Insulation Resistance: | Above DC500V, 500MΩ |
| High Light: | Barrier Terminal Block Spacing 9.52mm,PBT Plastic Barrier Terminal Block,Wire Inlet Terminal Block Barrier |
||

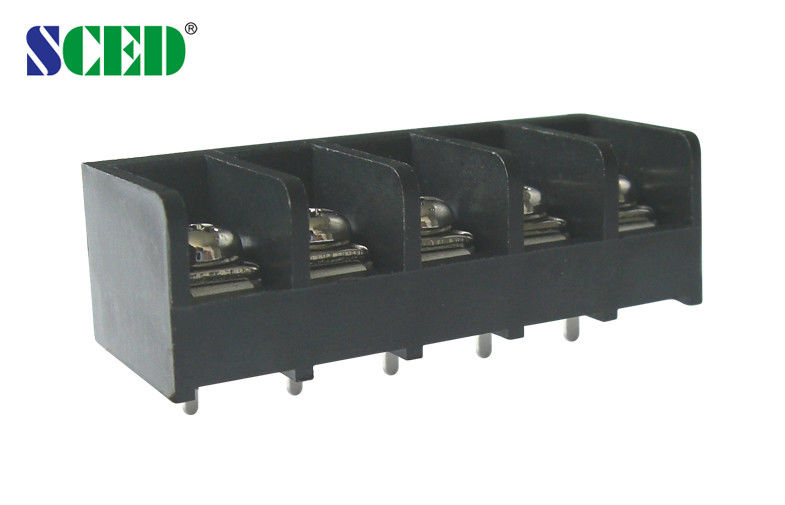

Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.1 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 3.5 / 7-10 | ||
Competitive Advantage:
