6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm

  • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
  • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
  • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL, CE, CUL, VDE, CQC etc.
Model Number: TR-5N
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: USD 0.153-0.244 per PCS
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
AWG: 30-10 Terminal Width: 6.2mm
Current: 600V Volt: 30A
Inflammability Class: Inflammability Class Contact Resistance: Less Than 8mΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Insulation Resistance: Above DC500V, 500MΩ

6mm2 Rail Mounted Terminal Blocks 600V 30A AWG:30-10 Terminal width 6.2mm





Detailed product Description:



Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.

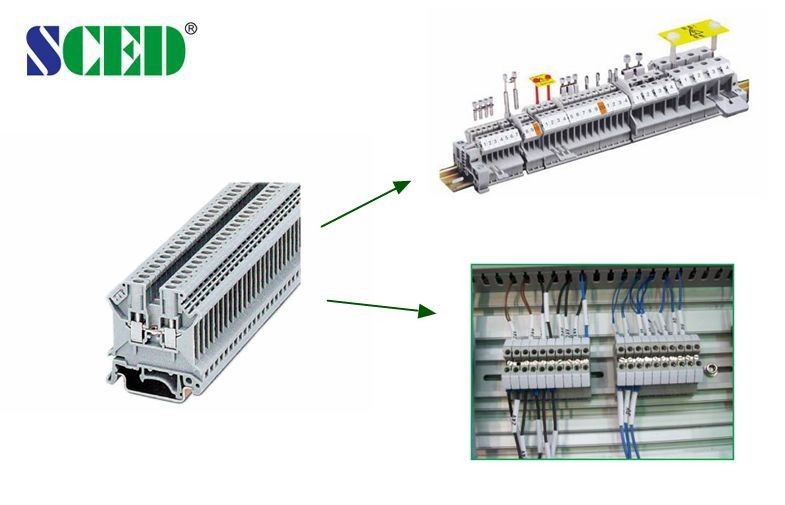

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-5N

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 0End Cover                      Grey



D-TR-3/16

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 1Fixed Bridge



FBI 10-6        Imax: 41A

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 2Insertion Bridge



EB 10-6        Imax: 32A

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 3Separating Plate



TS-K

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 4Partition Plate



ATP-TR

Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             41 / 6

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

Ⅲ / Ⅰ



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm 5
